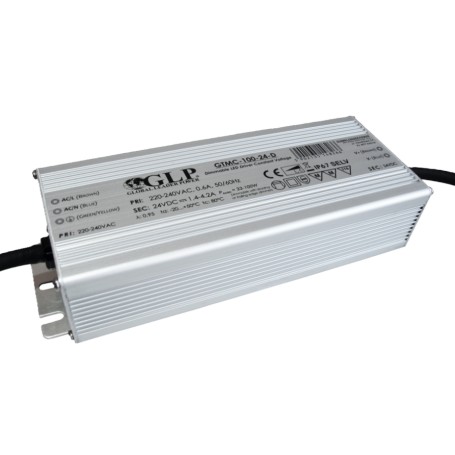

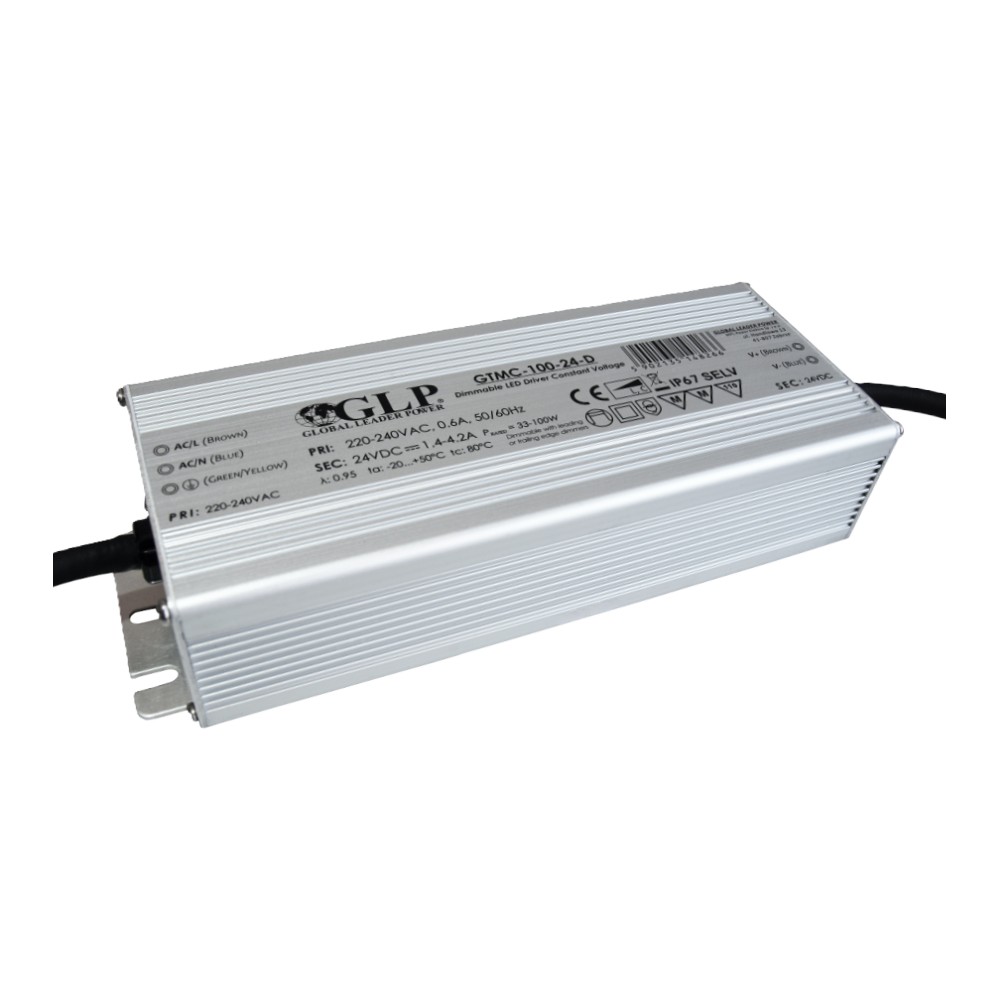

LED Power Supply 100W 24V TRIAC Dimmable IP67 View larger

LED Power Supply 100W 24V TRIAC Dimmable IP67

GTMC-100-24-D

Triac dimmable 100W, Single Output 24VDC Switching Power Supply IP67.

Suitable for LED installation, LED strip, LED panels, etc.

Triac dimmable 100W, Single Output 24VDC Switching Power Supply IP67.

Suitable for LED installation, LED strip, LED panels, etc.

More details

12 Items in stock

In stock

662,50 kr tax incl.

Add to wishlist

Download

GTMC-100-D-spec-EN.pdf

Download (445.77k)

Data sheet

Power100W
Efficiency≥ 90% / full load
Working Temperature-20°C~50°C
Case Temp. Tc (Max.)+80°C
Input VoltageAC220-240V/50-60Hz
Input Current0.6A / 230VAC
Inrush Current (Typ.)45A / 500μs (Cold start)
Output voltage24VDC
Output current4,2A
IPIP67
Dimensions191 x 70 x 40mm (L x W x H)
Weight0,45kg
Dimmable functionTriac/Phase cut
Dimming MethodForward and Reverse-phase control
Safety StandardsEN 61347-1, EN 61347-2-13 , EN 60598-1
EMC EmissionEN 55015
EMC ImmunityEN 61547

More info

Triac dimmable LED Power Supply

  • To supply 24VDC constant voltage LED
  • Trailing edge dimming (reverse-phase control)
  • Over heat protection, autoreset
  • Overload protection, autoreset
  • Full isolated plastic case
  • IP67
