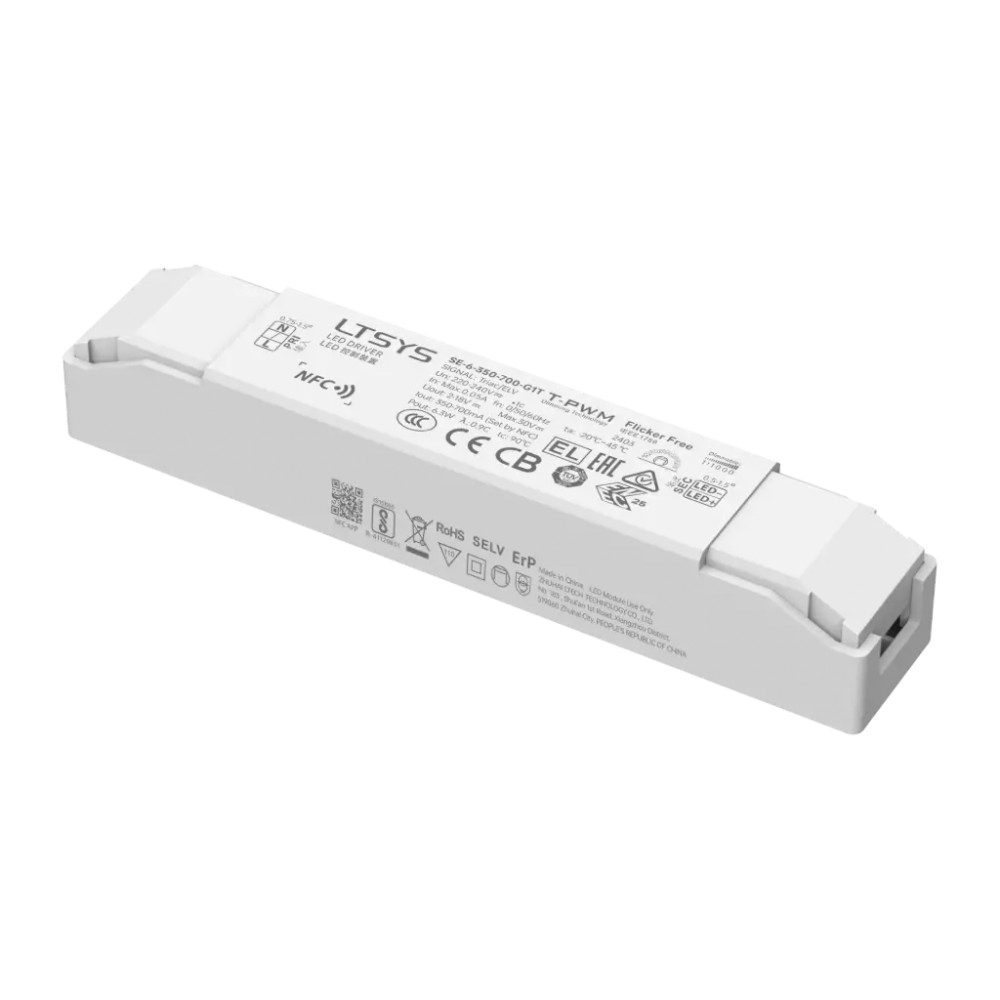

SE-6-350-700-G1T
Driver designed to drive LEDs with constant current 1 output.
A very competent driver that can handle 0.7W-6.3W
Dimming range: 0–100% down to 0.01%
Selectable current via NFC 350mA to 700mA.
Driver designed to drive LEDs with constant current 1 output.
A very competent driver that can handle 0.7W-6.3W
Dimming range: 0–100% down to 0.01%
Selectable current via NFC 350mA to 700mA.
10 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 0.7W ~ 6.3W |
| Efficiency | 83% |
| Constant Current | 350 - 700mA |
| Ambient temperature Ta | Ta: -20 - 45°C |
| Case Temp. Tc (Max.) | +90°C |
| Input Voltage | 200~240VAC 50/60Hz, Power factor >= 0.9@230V |
| Input Current | 0.05A |
| Output voltage | 2 - 18VDC, max ≤30Vdc |
| IP | IP20 |
| Cable | Pri: 0.75-1.5mm² |
| Height | 20mm |
| Width | 22mm |
| Length | 119mm |
| Weight | 50g |
| Dimmable function | 0-100% |
| Dimming Method | Forward and Reverse-phase control |
| Safety Standards | EN61347-1, EN61347-2-13, EN62384 |
| EMC Emission | EN55015, EN61000-3-2, EN61000-3-3, EN61547 |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11, EN61547 |
Driver dimmable with both leading and trailing edge control.
Intelligent Constant Current LED Driver with V0 flame-retardant housing from SAMSUNG/COVESTRO. Ultra-small, thin, and lightweight with a screwless end cap. Features adjustable output current in 1 mA steps, soft-on and fade-in dimming, and T-PWM super deep flicker-free dimming down to 0.01%. Includes overheat, overvoltage, overload, and short-circuit protection with automatic recovery. Suitable for Class Ⅰ/Ⅱ/Ⅲ indoor fixtures, 100,000 h lifespan, and 5-year warranty. Output current, minimum brightness, and current transition time can be adjusted via the mobile app.
