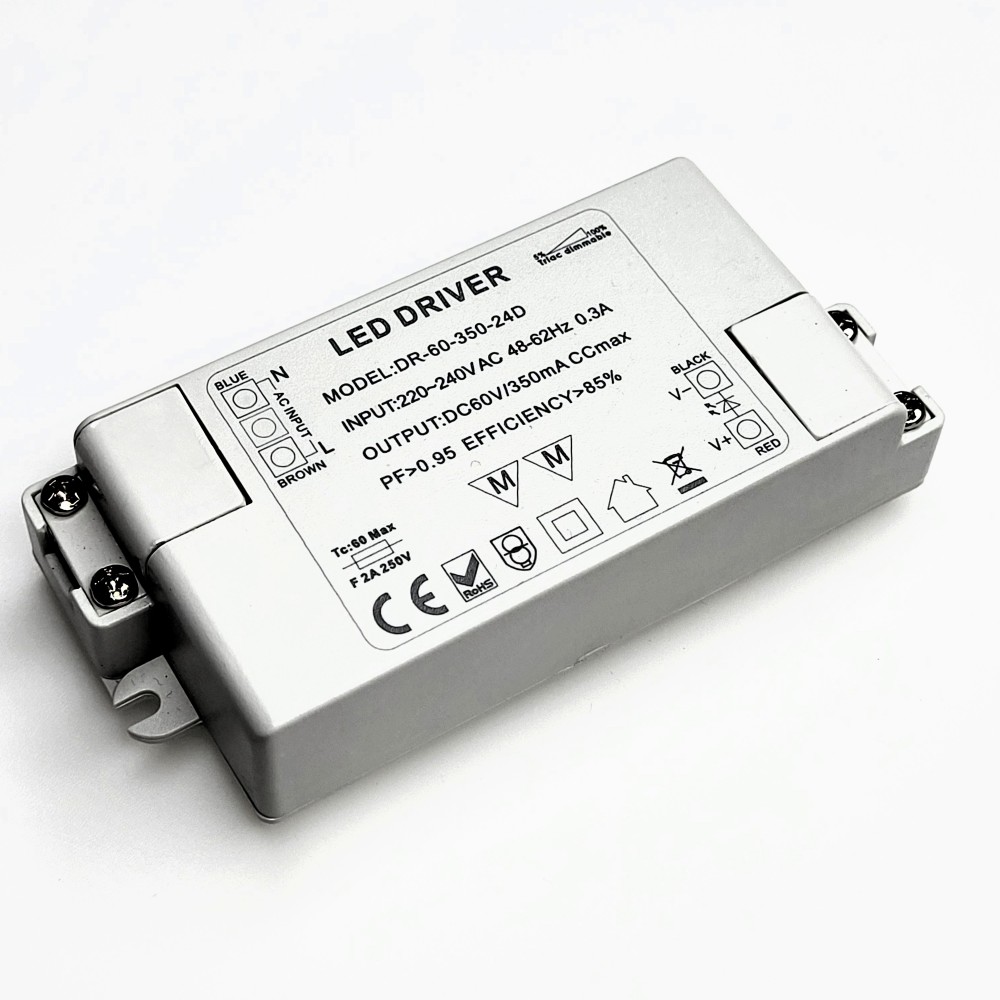

DR-60-350-24D
Suitable for LED Downlight 350mA constant current.
Suitable for LED Downlight 350mA constant current.
8 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 21W |
| Efficiency | 85% |
| Constant Current | 350mA |
| Working Temperature | 0°C~50°C |
| Ambient temperature Ta | Ta: 50°C |
| Case Temp. Tc (Max.) | +70°C |
| Input Voltage | 220~240VAC 48/62Hz, Power factor >= 0.95 |
| Input Current | 0.3A |
| Output voltage | 20V - 60Vdc |
| IP | IP20 |
| Cable | 0.75-1.5mm² |
| Height | 21mm |
| Width | 44mm |
| Length | 95mm |
| Weight | 0.2kg |
| Dimmable function | 1-100% |
| Dimming Method | Pulse Width Modulation |
| Safety Standards | EN 61347-1, EN 61347-2-13 |
| EMC Emission | EN 55015 |
| EMC Immunity | EN 61547, EN 61000-3-3; EN 61000-3-2, 3.75kVAC |
