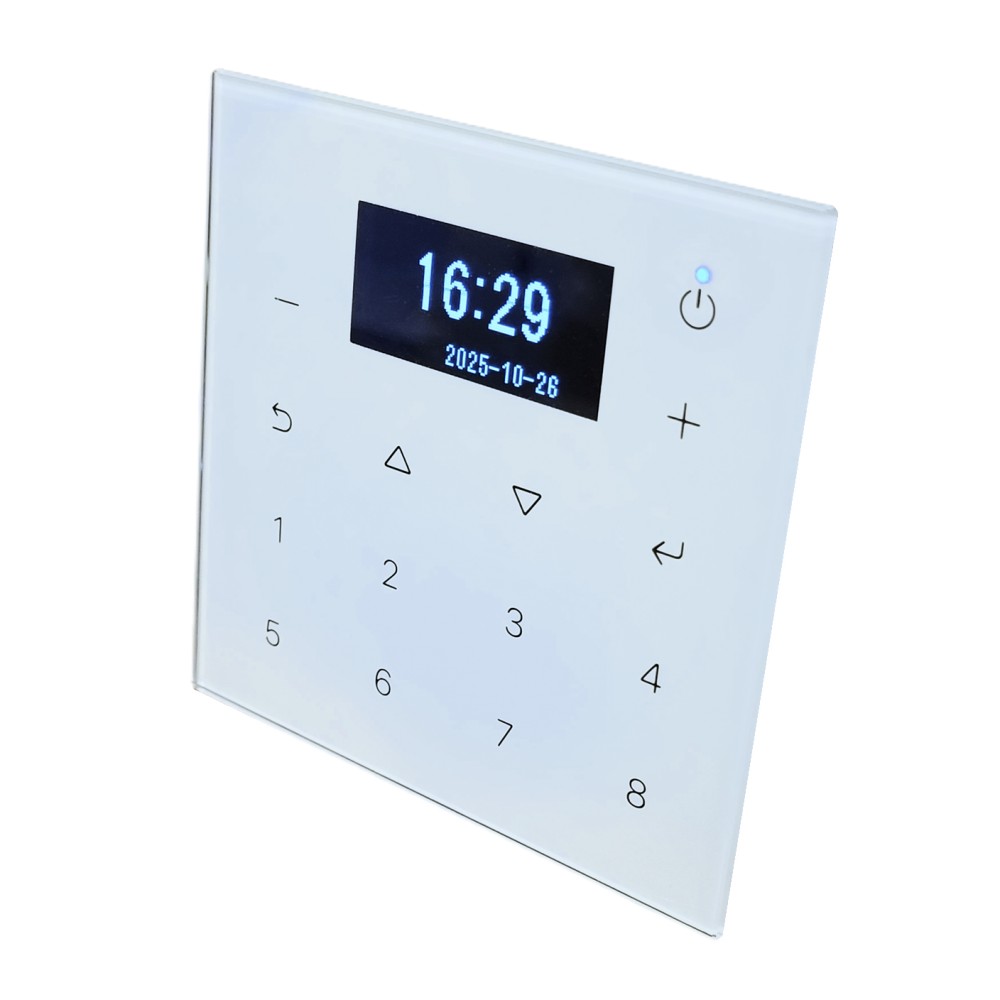

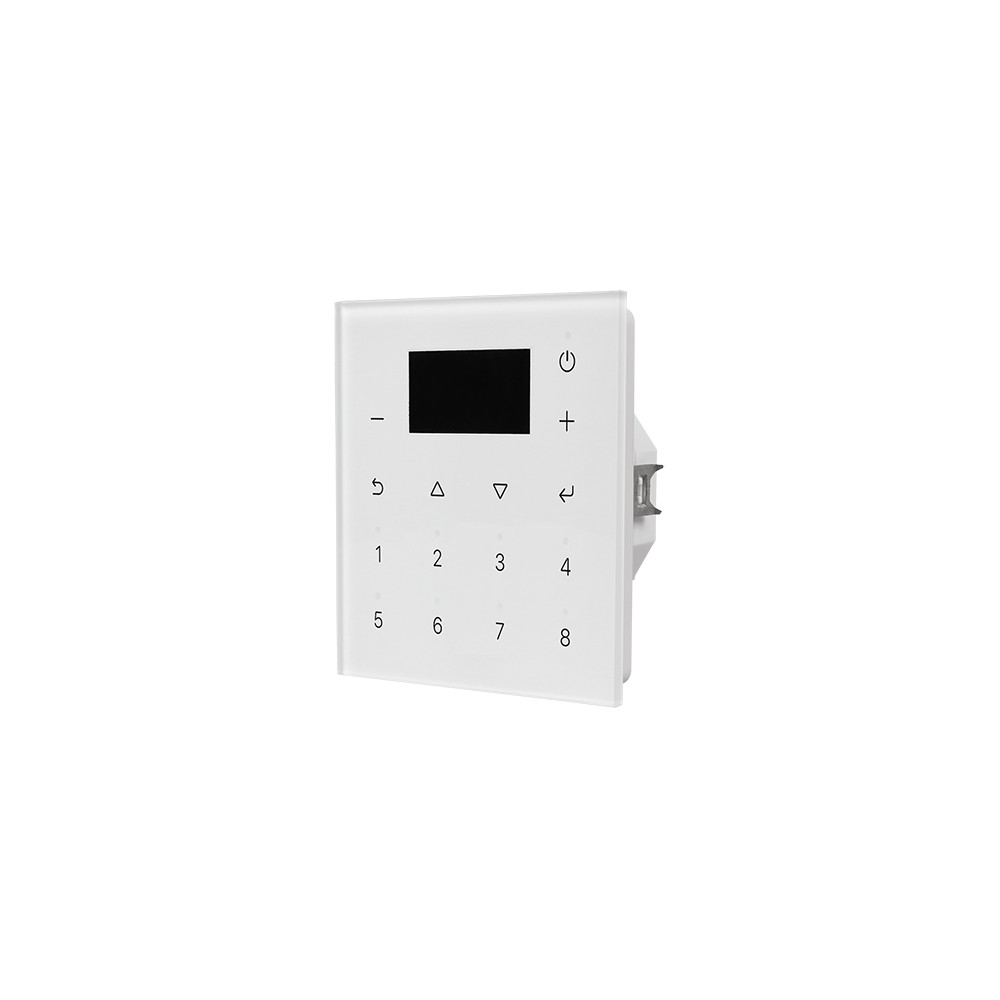

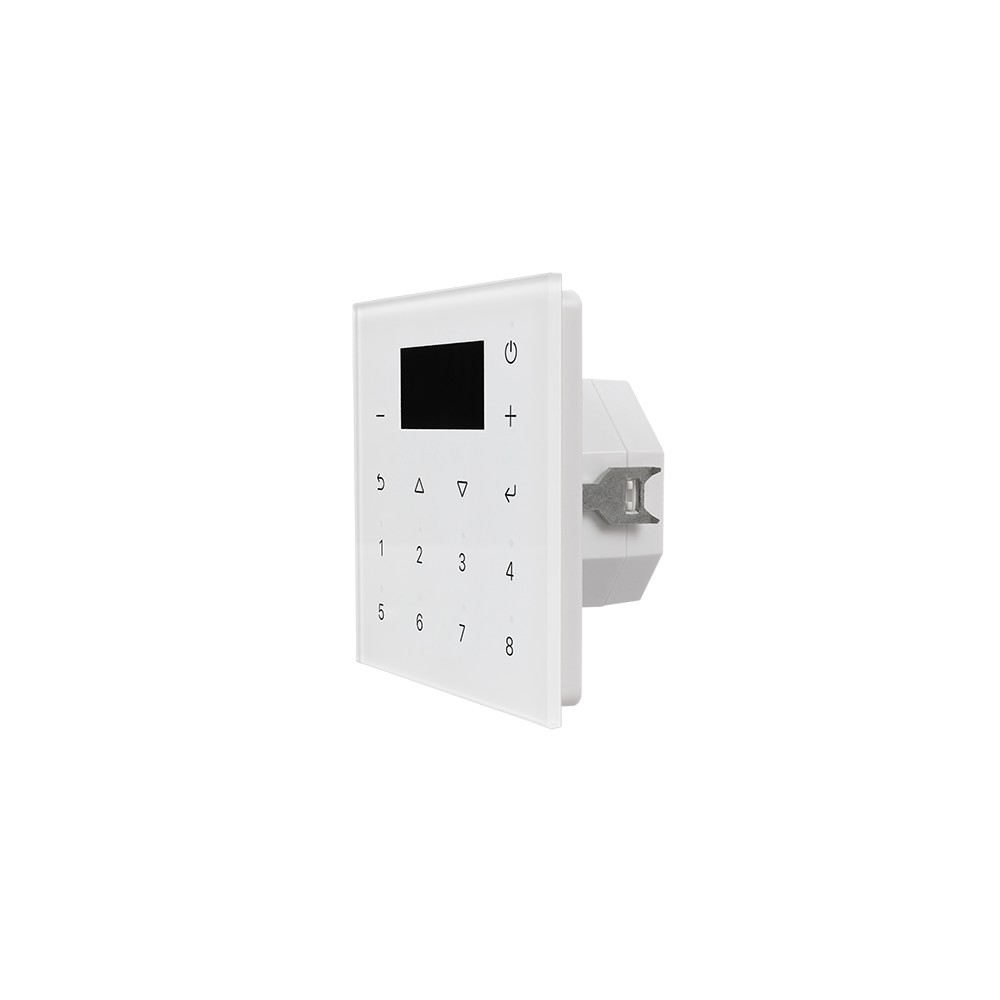

DALI Master Control Touch Panel med OLED display

SR-2300T-OLED

The DALI Master control panel is a central controller of a DALI system to control DALI control gears on the DALI line. Its
main features are as follows:

The DALI Master control panel is a central controller of a DALI system to control DALI control gears on the DALI line. Its
main features are as follows:

Mer detaljer

1 st i lager.

I lager

OBS: Sista varan i lager!

1 900,00 kr inkl. moms.

Lägg till i önskelistan

Nedladdning

SR-2300T-OLED instruction.pdf

Nedladdning (1.6M)

Datablad

Omgivande temperatur Ta0~+40°C
Kapslingstemp Tc (Max.)+75°C
Ingångsspänning100-240VAC, 50/60Hz
Ingångsström< 15 mA
IPIP20
Dimming InterfaceDALI
Garanti5 år

Mer information

DALI Master Control Touch Panel med OLED display

Features:
  • Supports 5 DALI control gear device types: DT6, DT8 Tc, DT8 XY coordinate, DT8 RGBWA, DT7 Switching actuator.
  • Enables to set up to 16 DALI scenes for each control gear.
  • Enables to assign each control gear to up to 16 DALI groups.
  • Supports addressing, grouping and scene configuration for max 64 control gears.
  • Configuration of DALI bus through the PC configuration software.
  • Built-in battery, built-in RTC, supports timer task configuration.
  • Supports cycle schedule configuration.
  • Supports bionic schedule configuration (Human Centric Lighting).
  • Enables to set up to 256 timer tasks, check manual for details.
