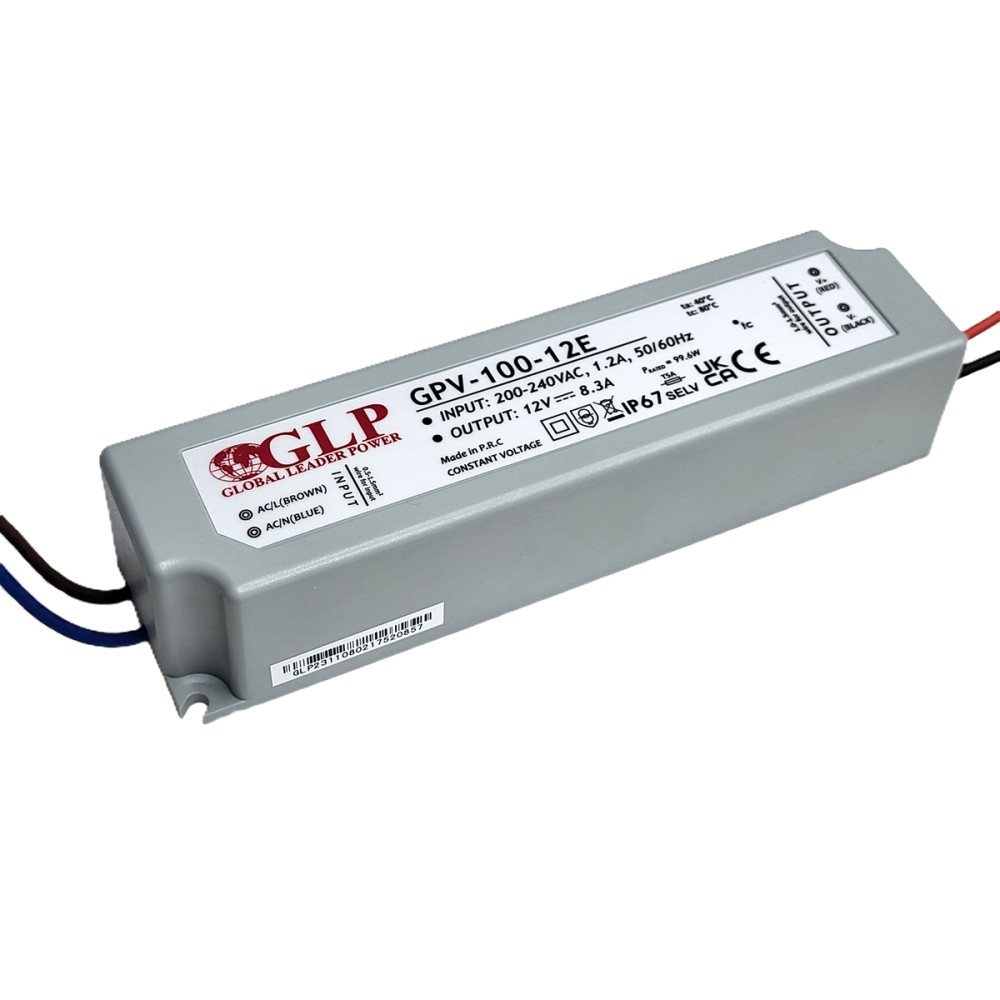

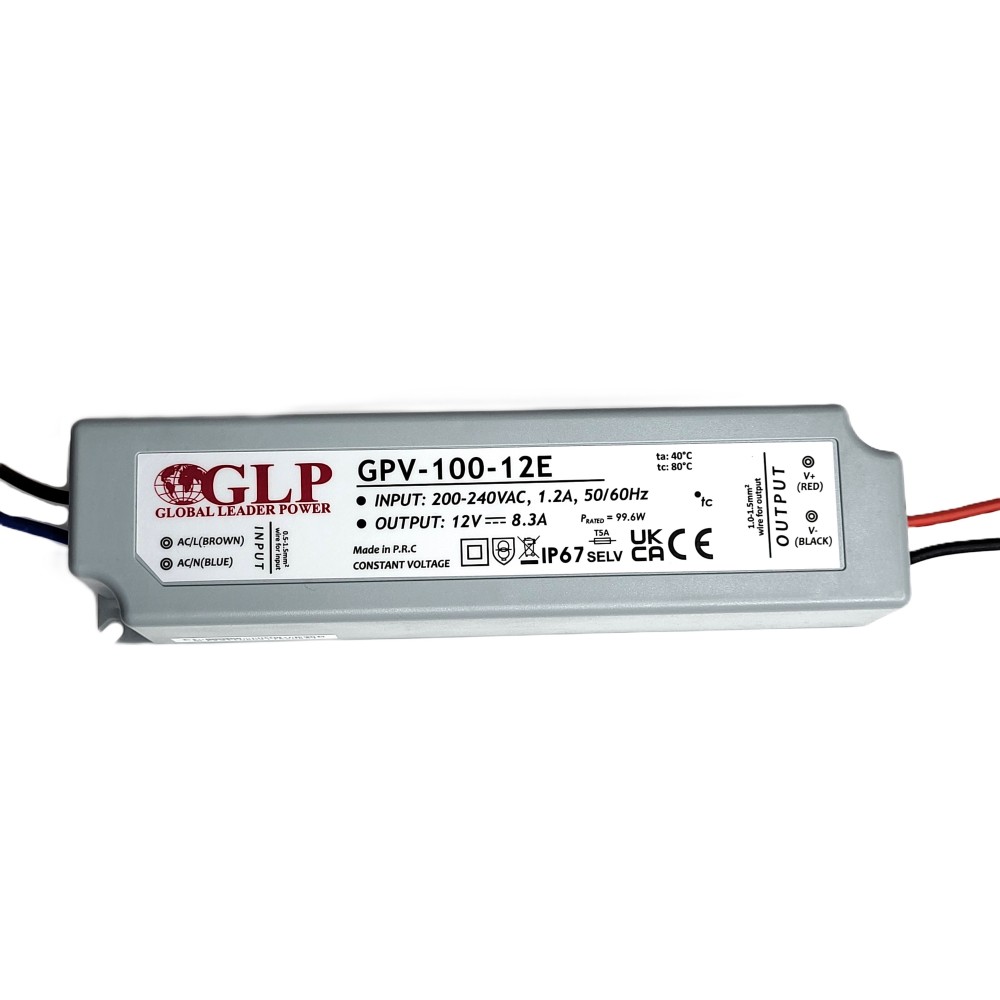

sv GPV100-12E
Suitable for LED installation, LED strip, LED panels, etc.
Suitable for LED installation, LED strip, LED panels, etc.
7 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 100W |
| Efficiency | 88% |
| Working Temperature | -30°C~70°C (Refer to Derating Curve) |
| Ambient temperature Ta | Ta: 40°C |
| Case Temp. Tc (Max.) | +80°C |
| Input Voltage | AC90-264V/47-63Hz |
| Input Current | <0.9A / 230VAC |
| Inrush Current (Typ.) | <35A/230VAC(25°C) TWIDTH=1200μs |
| Output voltage | 12VDC |
| Output current | 8.3A |
| IP | IP67 |
| Dimensions | 190 x 52 x 37mm (L x W x H) |
| Weight | 0,45kg |
| Safety Standards | EN 61347-1, EN 61347-2-13 |
| EMC Emission | EN 55015 |
| EMC Immunity | EN 61547, EN 61000-4-2,3,4,5,6,8,11,, |
