sv APV-8-12

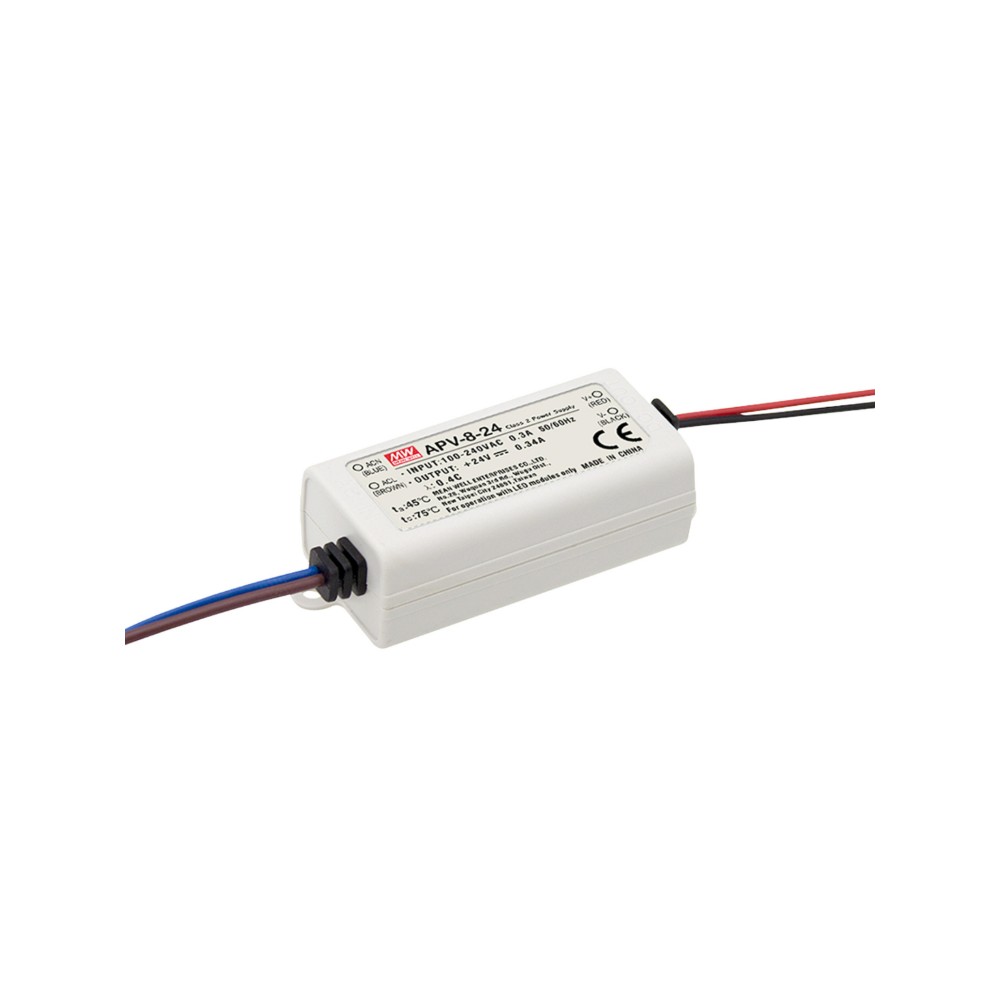

Single Output Switching Power Supply.
Suitable for LED installation, LED strip, LED sign etc.
Single Output Switching Power Supply.
Suitable for LED installation, LED strip, LED sign etc.
4 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 8W |
| Efficiency | 78.5% |
| Working Temperature | -30 ~ +70 (Refer to "Derating Curve") |
| Ambient temperature Ta | +45℃ |
| Case Temp. Tc (Max.) | +75℃ |
| Input Voltage | 180 ~ 264VAC, 47 ~ 63Hz, PF≧0.5/230VAC |
| Input Current | 0.15A / 230VAC |
| Inrush Current (Typ.) | COLD START 70A(twidth=120 s measured at 50% Ipeak) at 230VAC |
| Output voltage | 12V |
| Output current | 0.67A |
| IP | IP42 |
| Cable | Open end 150mm |

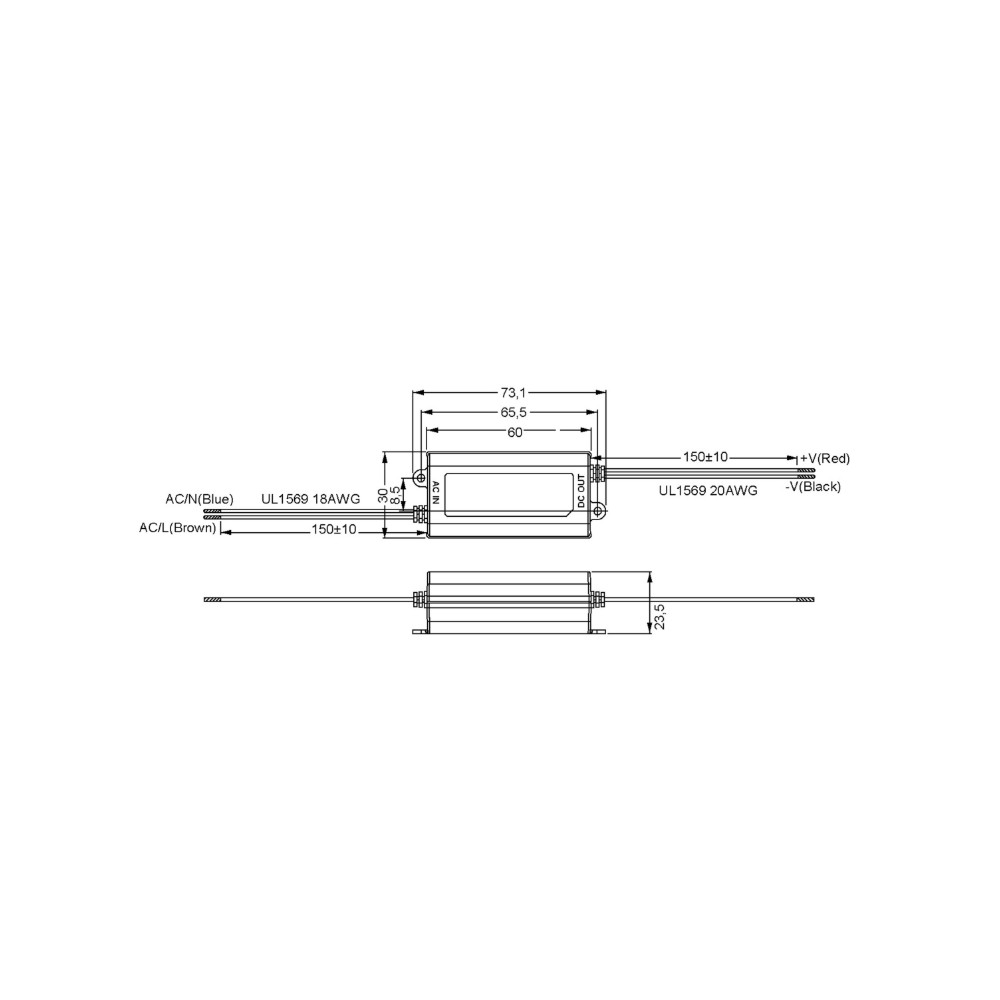

| Height | 23.5mm |
| Width | 30mm |
| Length | 60mm |
| Weight | 0.05kg |
| Safety Standards | ENEC EN61347-1,EN61347-2-13,EN62384, EAC TP TC 004 |
| EMC Emission | EN55015,EN61000-3-2 Class A,EN61000-3-3, EAC TP TC 020 |
| EMC Immunity | EN61547,EN61000-4-2,3,4,5,6,8,11; light industry level(surge 2KV), criteria A, EAC TP TC 020 |
| Materials | Flame retardant UL 94V-0 plastic enclosure |
Meanwell is one of the leading manufacturers of power supply and has one of the most reliable products on the market.
