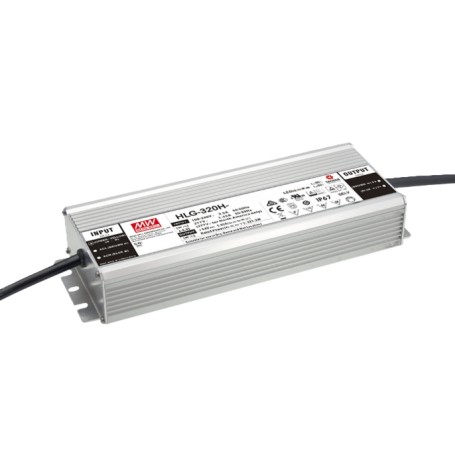

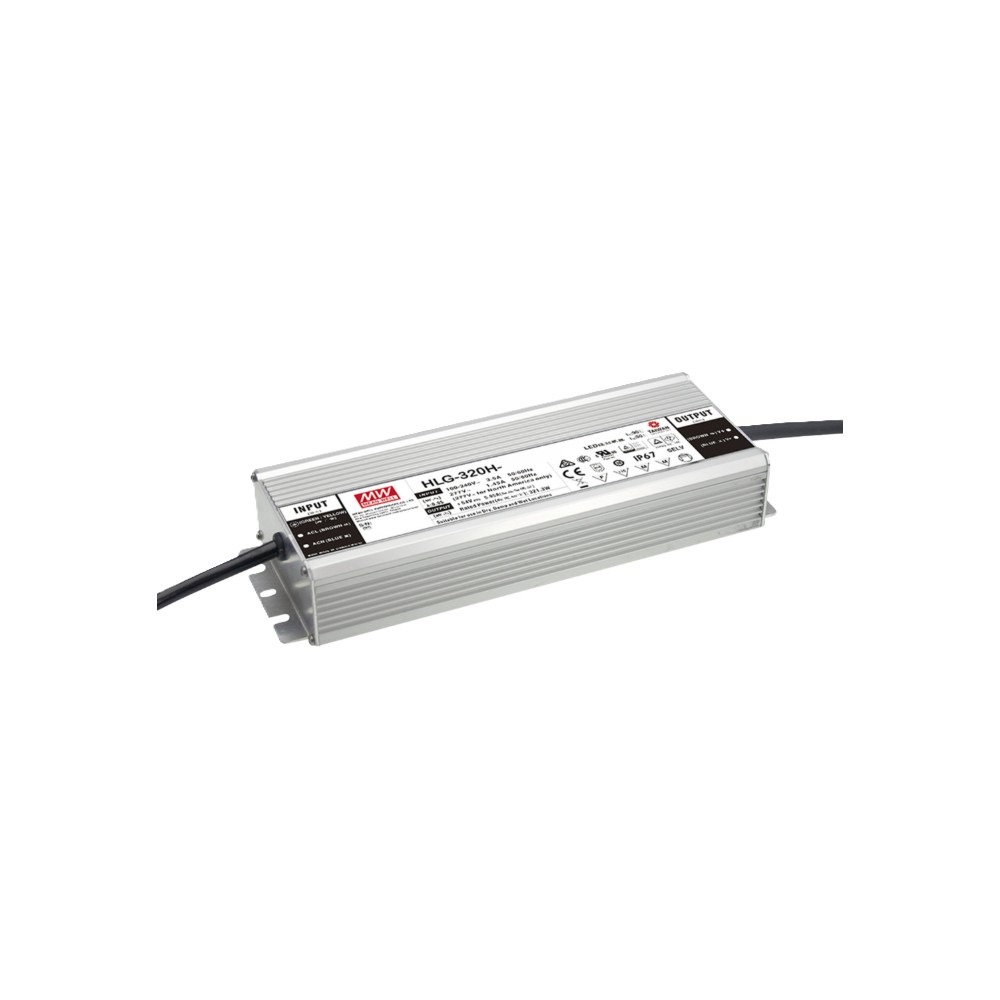

HLG-320H-24A / 320W, 24V, 13.3A View larger

HLG-320H-24A / 320W, 24V, 13.3A

HLG-320H-24A

Single Output Switching Power Supply. The LED driver featuring dual mode constant voltage and constant current output. Suitable for LED installation, LED strip, LED panels, etc.

Single Output Switching Power Supply. The LED driver featuring dual mode constant voltage and constant current output. Suitable for LED installation, LED strip, LED panels, etc.

More details

In stock, contact dealer for quote

Add to wishlist

Download

HLG-320H-spec.pdf

Download (214.2k)

Data sheet

Power320.2W
Efficiency94%
Working Temperature-40 ~ +70 (Refer to "Derating Curve") ℃
Ambient temperature Ta+50℃
Case Temp. Tc (Max.)+90℃
Input Voltage90 ~ 305VAC 47 ~ 63Hz PF≧0.95/230VAC
Input Current1,65A / 230VAC
Output voltage21 ~ 26V
Output current6.67 ~ 13.34A
IPIP65
CableOpen end 300mm

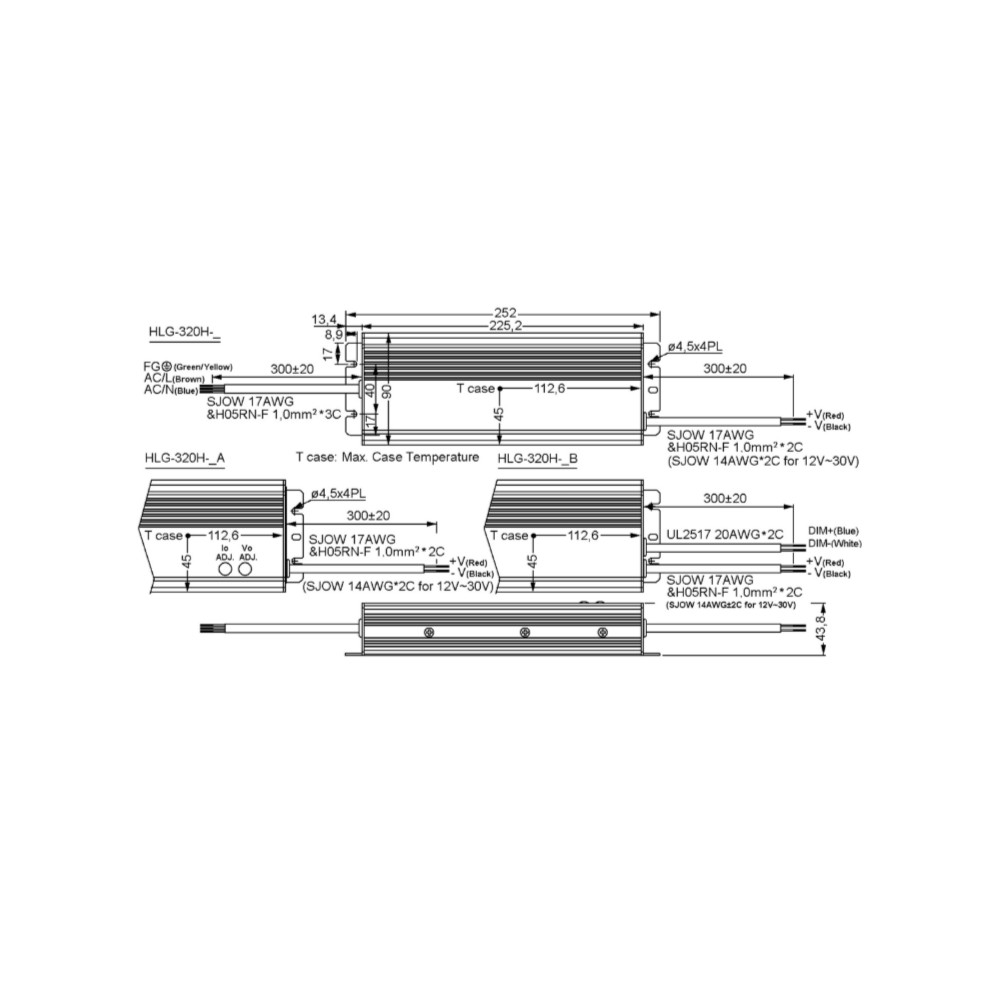

Dimensions252*90*43.8mm (L*W*H)
Weight1.88Kg
MaterialsAluminum

More info

Technical Specification

  • Over heat protection, autoreset
  • Over load protection, autoreset
  • Short circuit protection, autoreset
