sv LP-GLSV-320B024

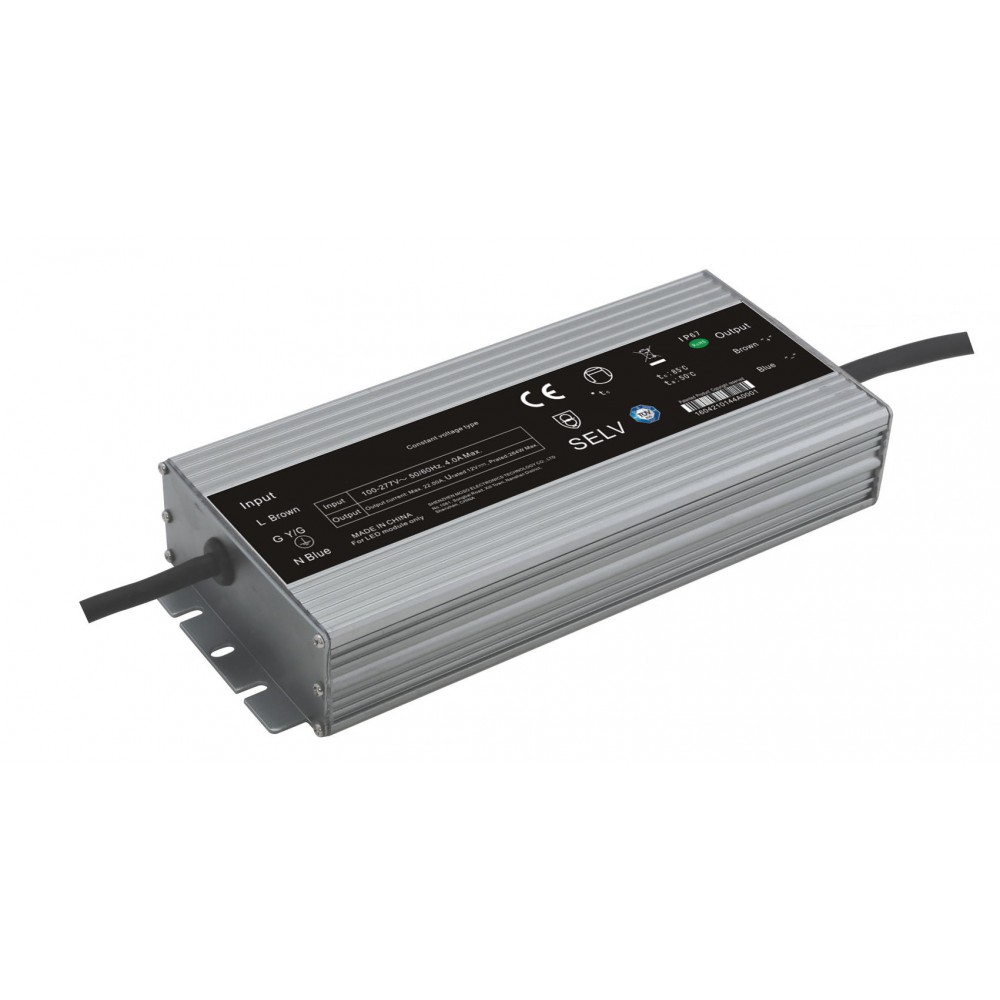

Proffesional 320W, 24V Single Output Switching Power Supply. The LED power supply is suitable for LED installations with LED strip, LED modules, etc.
Proffesional 320W, 24V Single Output Switching Power Supply. The LED power supply is suitable for LED installations with LED strip, LED modules, etc.
2 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 320W |
| Efficiency | 92% |
| Working Temperature | -40 ~ +60°C (refer to "OUTPUT LOAD vs TEMP" section) |
| Ambient temperature Ta | +50℃ |
| Case Temp. Tc (Max.) | +85°C |
| Input Voltage | 90 ~ 305VAC 47 ~ 63Hz PF≧0.96/230VAC |
| Input Current | 4A max |
| Inrush Current (Typ.) | COLD START 150A / 230VAC (Refer to Inrush Current Waveform) |
| Output voltage | 24VDC |
| Output current | 13.33A max |
| IP | IP67 |
| Cable | VDE, IN 3 x 1.0mm2, Out VDE 2 x 2.5mm2, length = 300 ± 10mm |
| Dimensions | 234*98*40mm (L*W*H) |
| Weight | 1.75Kg |
| Safety Standards | EN 61347-1, EN 61347-2-13 |
| EMC Emission | EN 55015, EN 61000-3-2, EN 61000-3-3 |
| EMC Immunity | EN 61547 |
| Materials | Aluminum |
| Warranty | 5 Years |
