sv LCM-60DA2
Single Output Switching LED Power Supply. The LED driver is dimmable with DALI2 and push-dim input.
Suitable for constant current LED installations, LED downlights, etc.
Single Output Switching LED Power Supply. The LED driver is dimmable with DALI2 and push-dim input.
Suitable for constant current LED installations, LED downlights, etc.
0 Item in stock Items in stock
In stock, delivery time 3-5 days
Warning: Last items in stock!
Availability date: 02/09/2026
| Power | 60.3W |
| Efficiency | 92% |
| Constant Current | 0.5/0.6/0.7/0.9/1.05/1.4A |
| Working Temperature | Tcase=-30 ~ +90℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section) |
| Case Temp. Tc (Max.) | +90°C |
| Input Voltage | 180 ~ 295VAC, 47 ~ 63Hz, PF≧0.975/230VAC |
| Input Current | 0.9A / 230VAC |
| Output voltage | Min: 2V, Max: 95V |
| IP | IP20 |

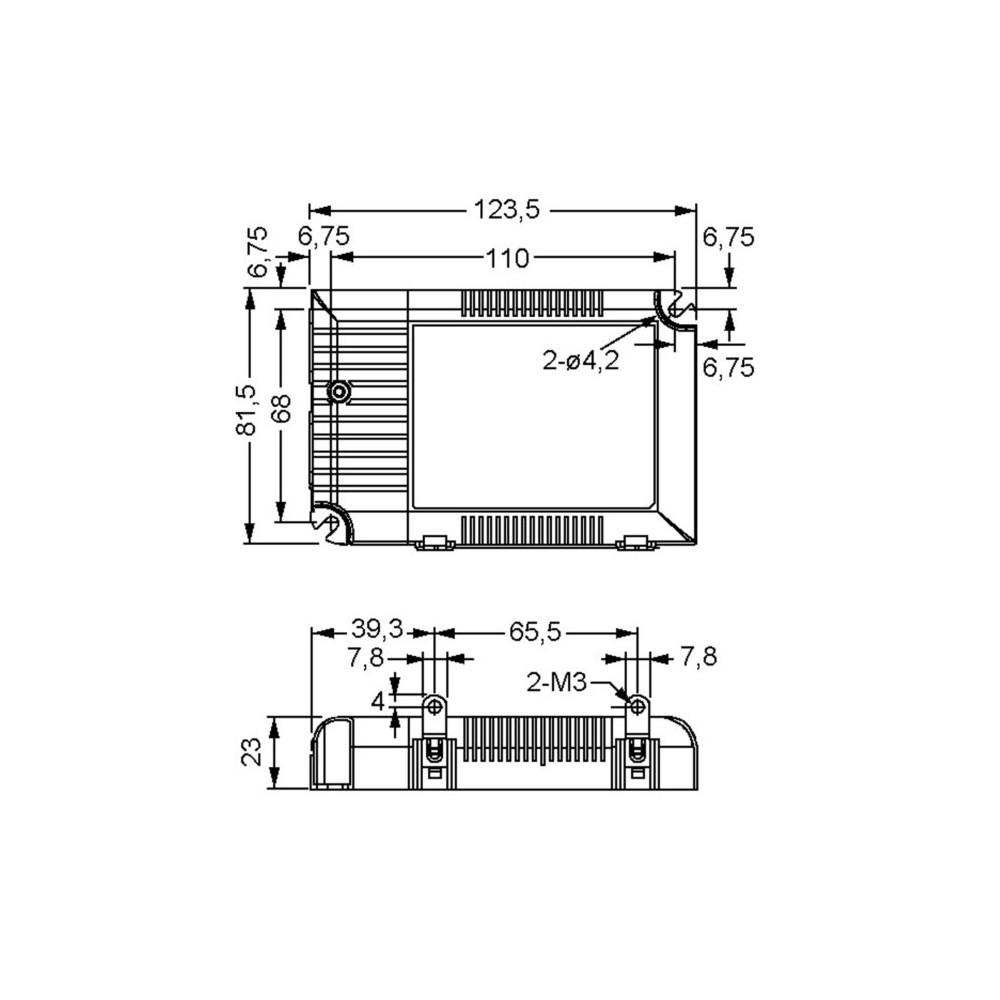

| Dimensions | 123.5*81.5*23mm (L*W*H) |
| Weight | 240g |
| Dimming Interface | DALI2/Push-dim |
| Dimming Method | Pulse Width Modulation |
| Materials | Flame retardant UL 94V-0 plastic enclosure |
| Warranty | 3 Years |
Meanwell is one of the leading manufacturers of power supply and has one of the most reliable products on the market.
