sv LP-EUP20A-1WMC-0
The 1 channel CC DALI Driver has both DALI or Switch DIM-function that can be dimmed manually. The dimming range is from 0-100% (LED Will start from 1% at touch dim). DALI and Switch DIM functions cannot be used simultaneously.
The 1 channel CC DALI Driver has both DALI or Switch DIM-function that can be dimmed manually. The dimming range is from 0-100% (LED Will start from 1% at touch dim). DALI and Switch DIM functions cannot be used simultaneously.
34 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 14W/350mA/3-40VDC, 20W/500mA/3-40VDC, 19,6W/700mA/3-28VDC |
| Efficiency | 83% |
| Constant Current | 300/500/700mA ±5% |
| Ambient temperature Ta | -20 ~ +40℃ |
| Case Temp. Tc (Max.) | Tc: +90℃ |
| Input Voltage | 100– 240VAC, 50/60Hz, pfc ≥0.9 |
| Output voltage | Max 50VDC |
| IP | IP20 |

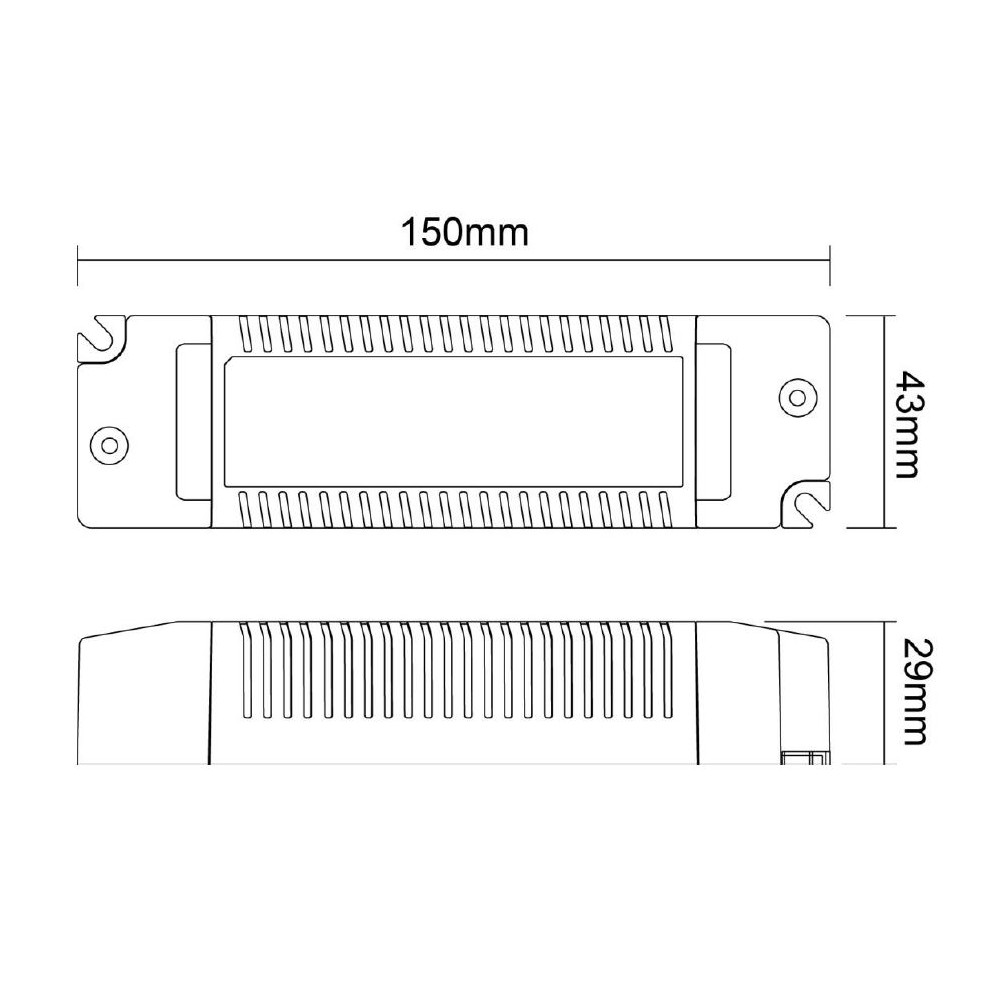

| Height | 29mm |
| Width | 43mm |
| Length | 150mm |
| Weight | 130g |
| Dimmable function | 0-100% |
| Communication | DALI standard protocol IEC 62386 / 0-1-10V active signal / adjustable resistance / PWM / Touch DIM |
| Dimming Interface | DALI/Push-Dim |
● DALI Protocol IEC62386
● Support Touch DIM function, and can be dimmed manually
● DALI or Switch DIM
● Dimming range is from 0-100% (LED Will start from 1% )
● Short circuit protection, Over load protection
● Security level : SELV
