New RGBW DMX Wall Panel View larger
Previous Next

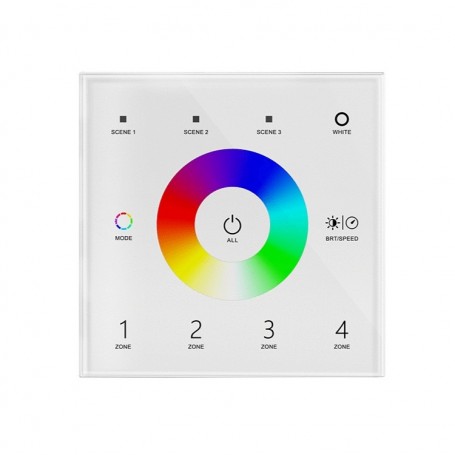

RGBW DMX Wall Panel

LP-DMX-RGBW-Panel-W

RGBW DMX Wall Panel, DMX Decoders, and DMX RF Receivers
An affordable DMX master for simpler DMX512 lighting installations; the panel can also control wireless DMX receivers.

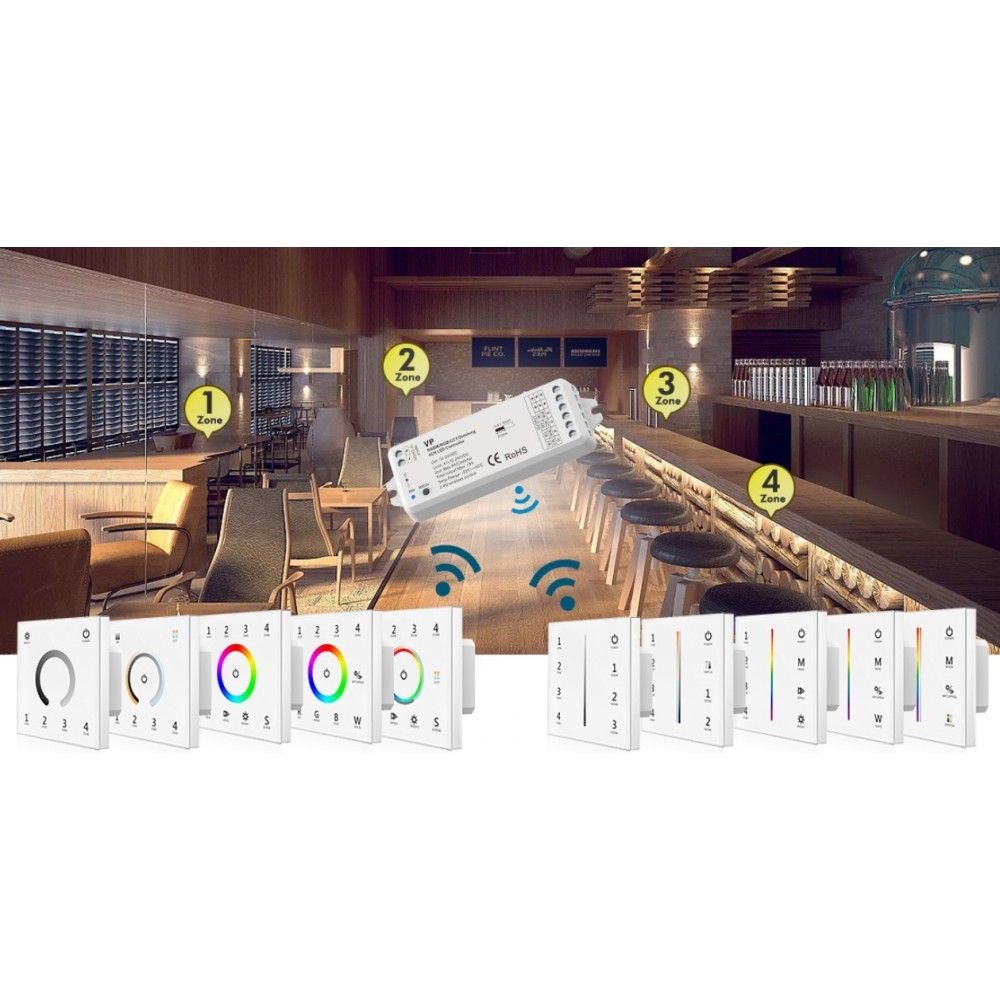

  • DMX512 master panel with touch control for 4 zones and 1–4 colors; can also function as an RF remote control for 4 zones and 1–4 colors.
  • DMX signal output compliant with the DMX512 standard protocol; compatible with DMX decoders from all manufacturers.
  • When used as an RF remote control, each zone can control multiple 2.4 GHz RF LED controllers.

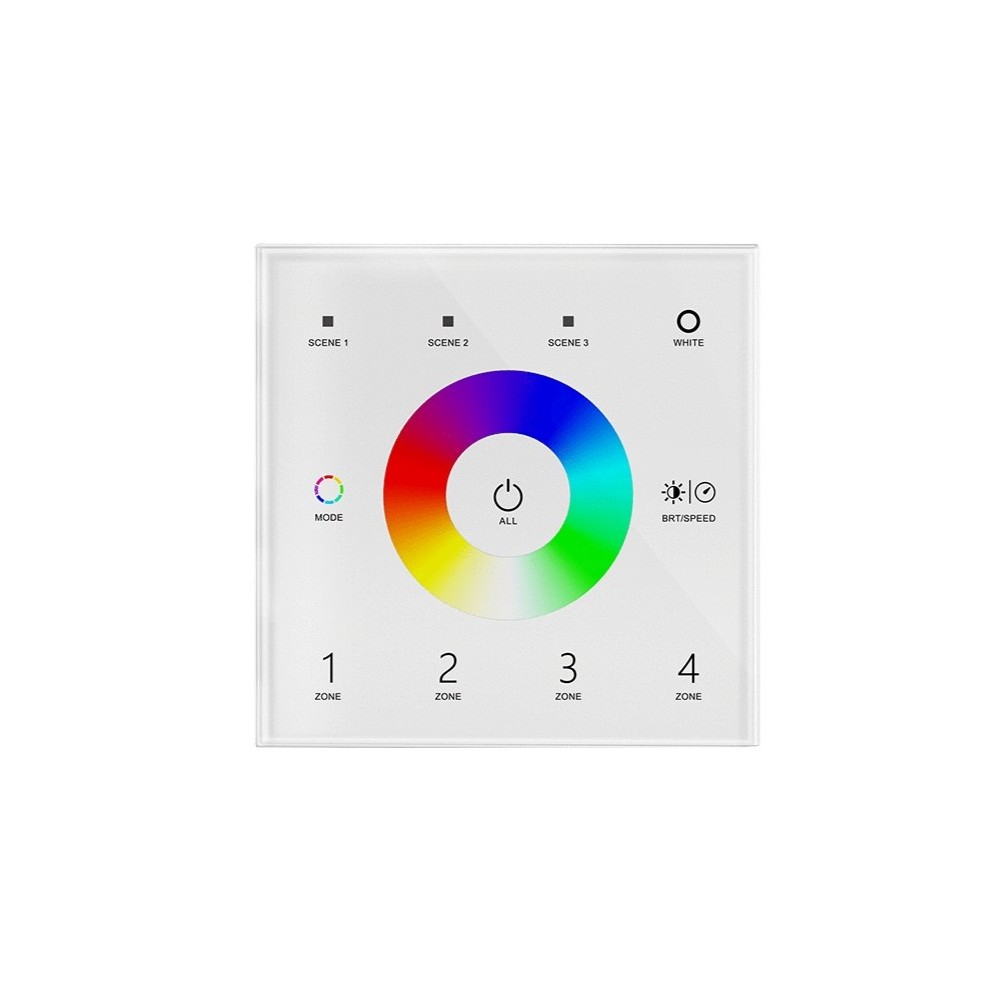

  • Highly sensitive, high-strength glass touch panel featuring a circular color slider (color wheel) in the center.
  • Smooth and precise color adjustment via the color slider.
  • Touch buttons with LED indicators.

RGBW DMX Wall Panel, DMX Decoders, and DMX RF Receivers
An affordable DMX master for simpler DMX512 lighting installations; the panel can also control wireless DMX receivers.

  • DMX512 master panel with touch control for 4 zones and 1–4 colors; can also function as an RF remote control for 4 zones and 1–4 colors.
  • DMX signal output compliant with the DMX512 standard protocol; compatible with DMX decoders from all manufacturers.
  • When used as an RF remote control, each zone can control multiple 2.4 GHz RF LED controllers.
  • Highly sensitive, high-strength glass touch panel featuring a circular color slider (color wheel) in the center.
  • Smooth and precise color adjustment via the color slider.
  • Touch buttons with LED indicators.

1 Item in stock

In stock

Warning: Last items in stock!

940,00 kr tax incl.

Add to wishlist

Download

DMX-Panels

Download (5.61M)

Data sheet

Ambient temperature TaTa: -30℃~55℃
Case Temp. Tc (Max.)+65°C
Input Voltage100~240VAC 50/60Hz
Input Current≤0.08A/230Vac
IPIP20

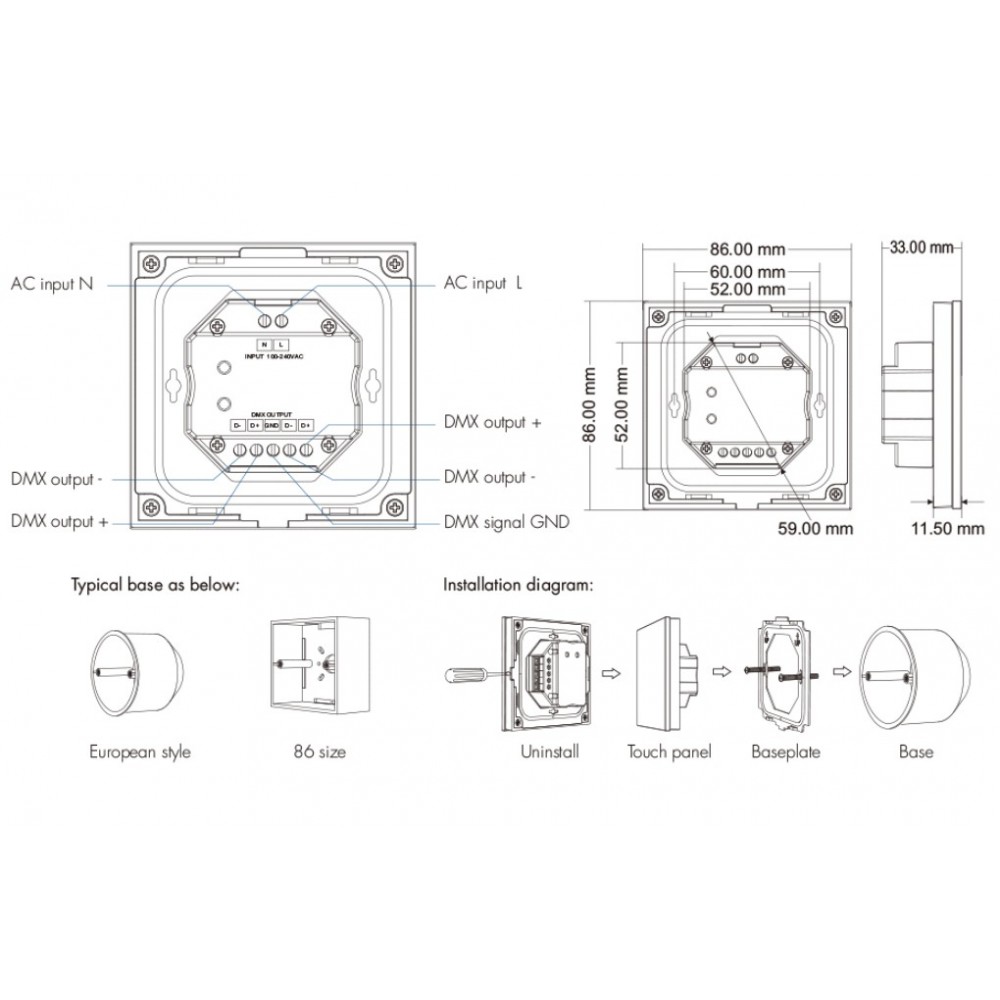

Height33mm
Width86mm
Depth86mm
Weight182g
ColorWhite
Dimmable function0-100%
Dimming InterfaceDMX 512
Safety StandardsEN61347-1
EMC EmissionETSI EN 301 489-1 V2.2.3 - EN 301 489-17 V3.2.4

Reviews

No customer reviews for the moment.

Write a review

RGBW DMX Wall Panel

RGBW DMX Wall Panel

RGBW DMX Wall Panel, DMX Decoders, and DMX RF Receivers
An affordable DMX master for simpler DMX512 lighting installations; the panel can also control wireless DMX receivers.

  • DMX512 master panel with touch control for 4 zones and 1–4 colors; can also function as an RF remote control for 4 zones and 1–4 colors.
  • DMX signal output compliant with the DMX512 standard protocol; compatible with DMX decoders from all manufacturers.
  • When used as an RF remote control, each zone can control multiple 2.4 GHz RF LED controllers.
  • Highly sensitive, high-strength glass touch panel featuring a circular color slider (color wheel) in the center.
  • Smooth and precise color adjustment via the color slider.
  • Touch buttons with LED indicators.
