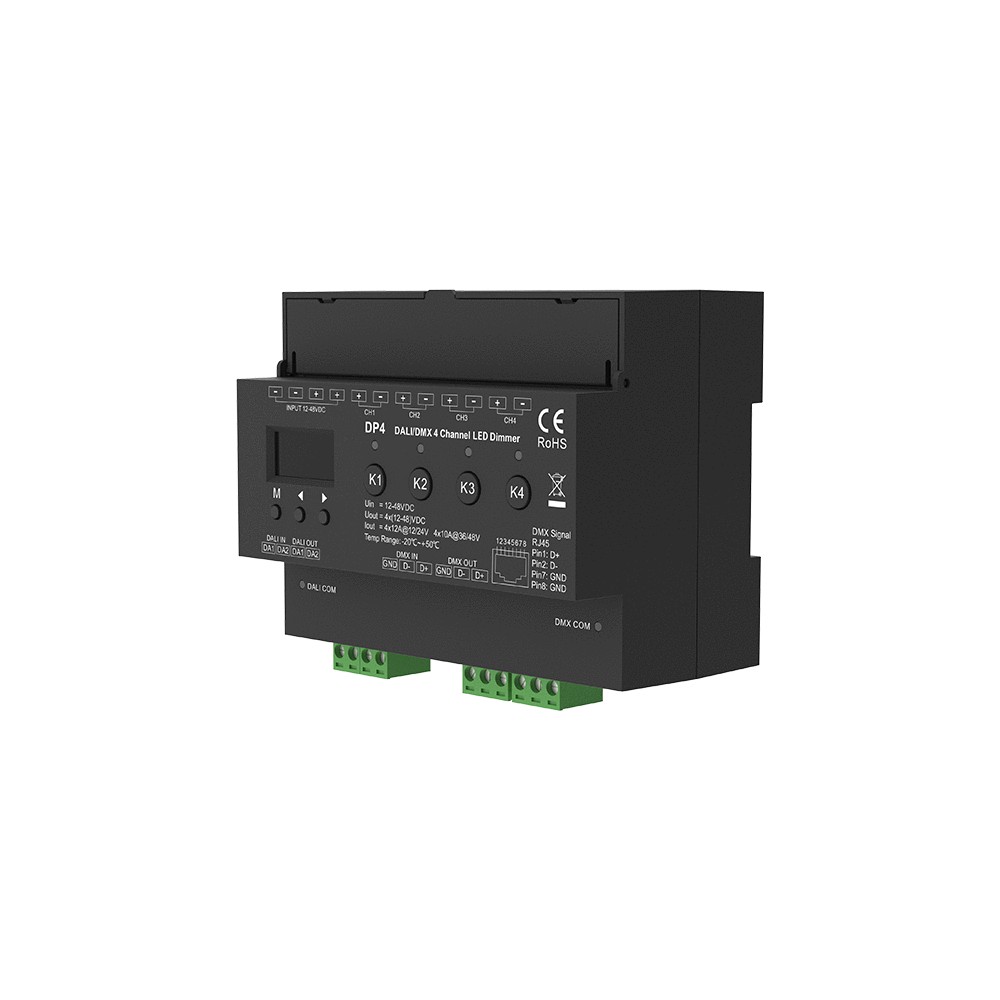

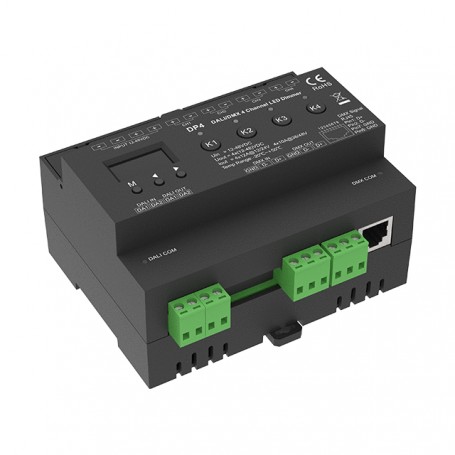

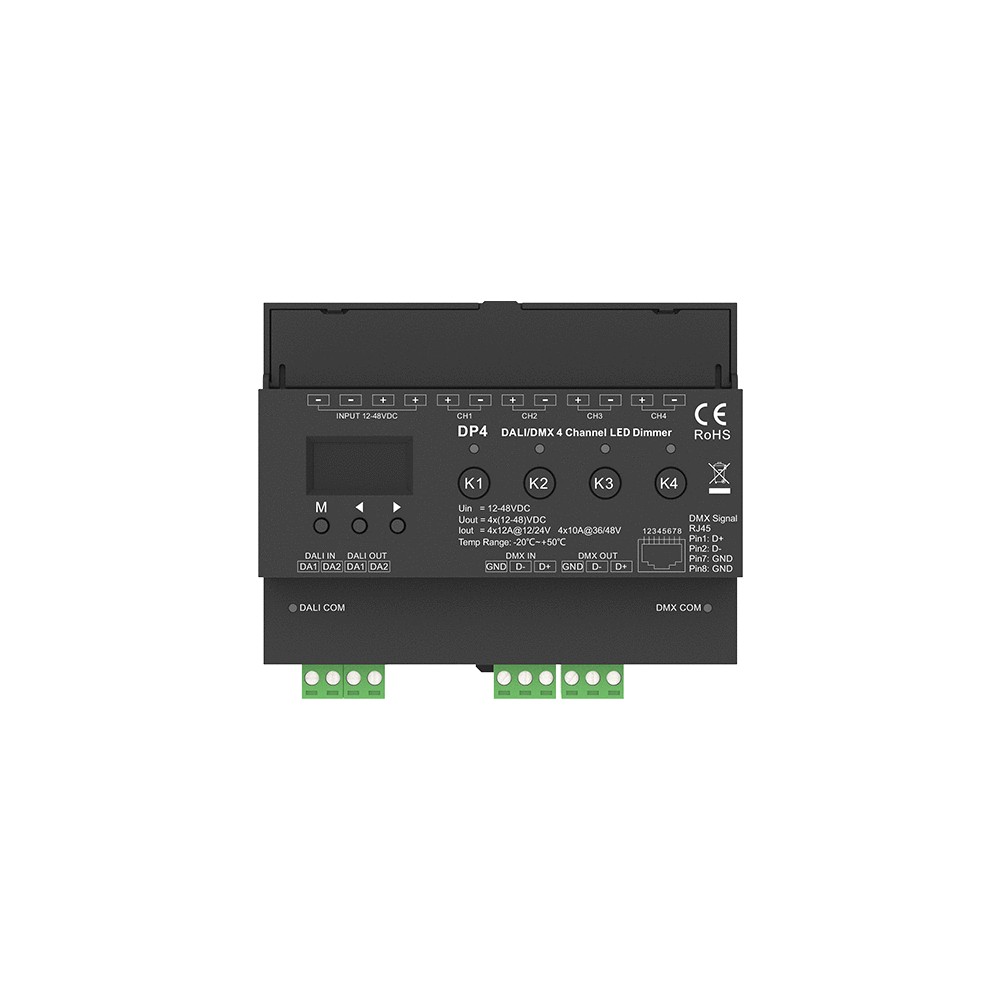

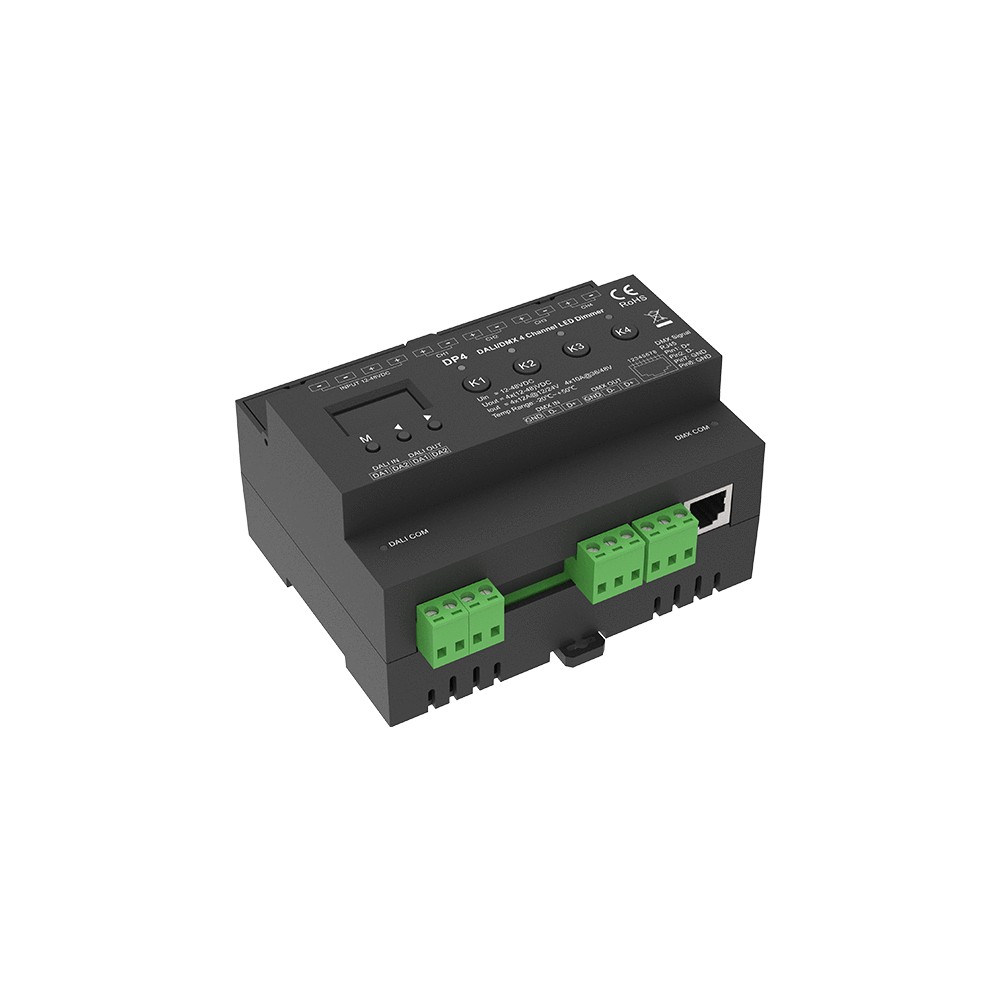

DALI/DMX 4-Channel Constant Voltage LED Dimmer

Note: The dimmer can't input DALI signal and DMX signal at the same time, you can only select one of the control methods.

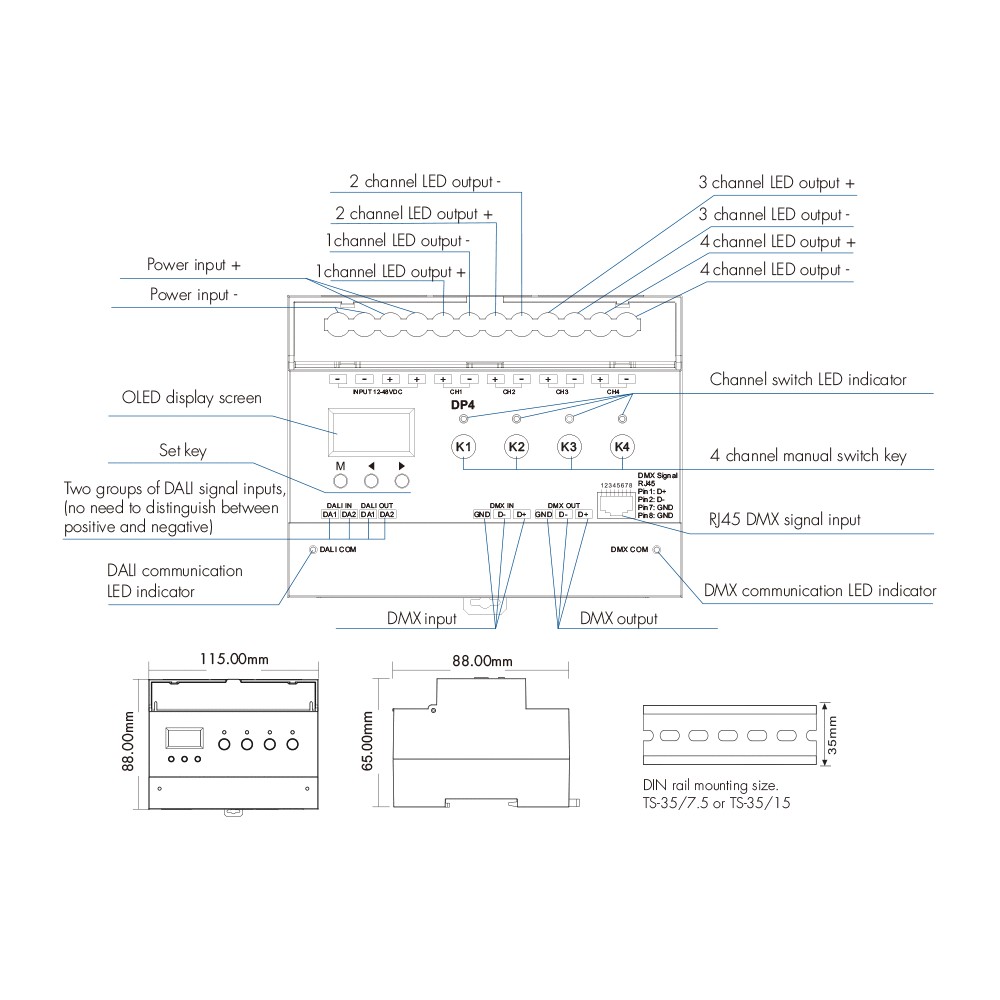

• 4-channel constant voltage LED dimmer with OLED screen display, supports DALI, DMX signal control.
  Auto switching by signal input or switching by key operation for three dimming modes: DALI, DMX, and manual mode.
• DALI mode:

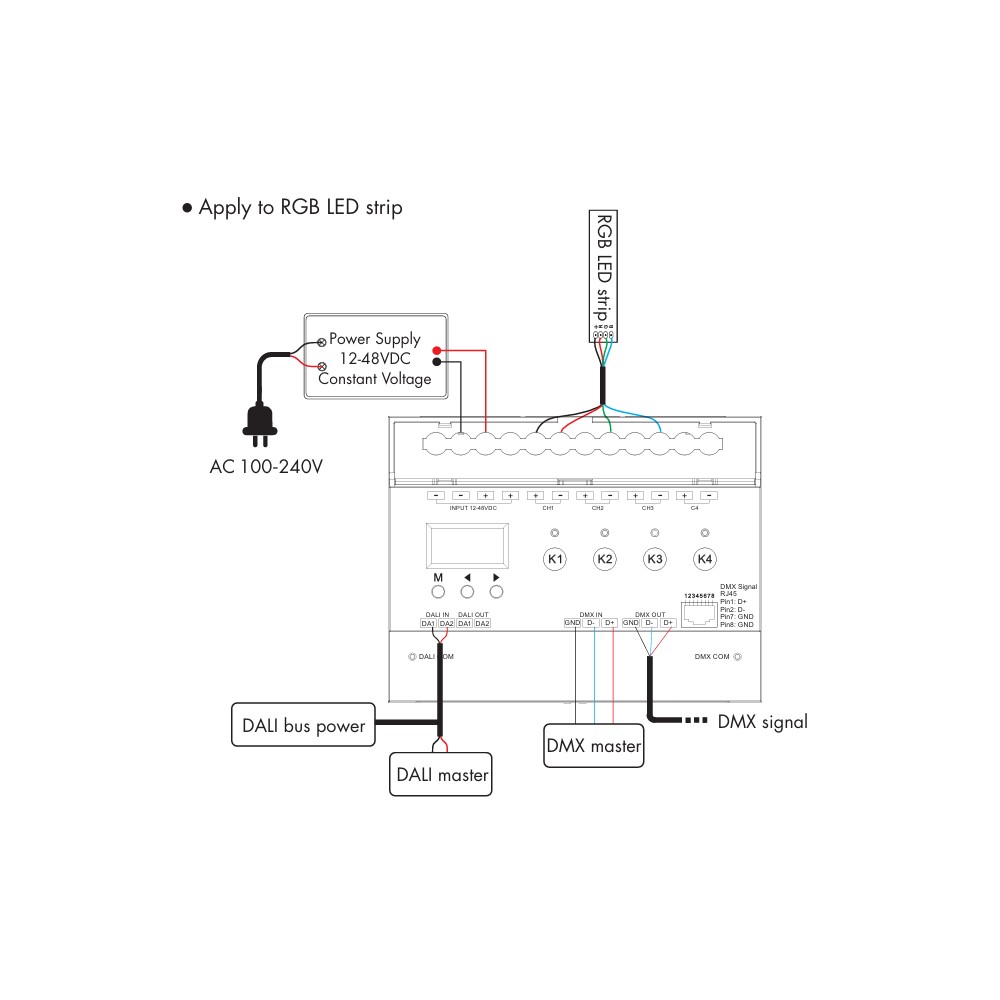

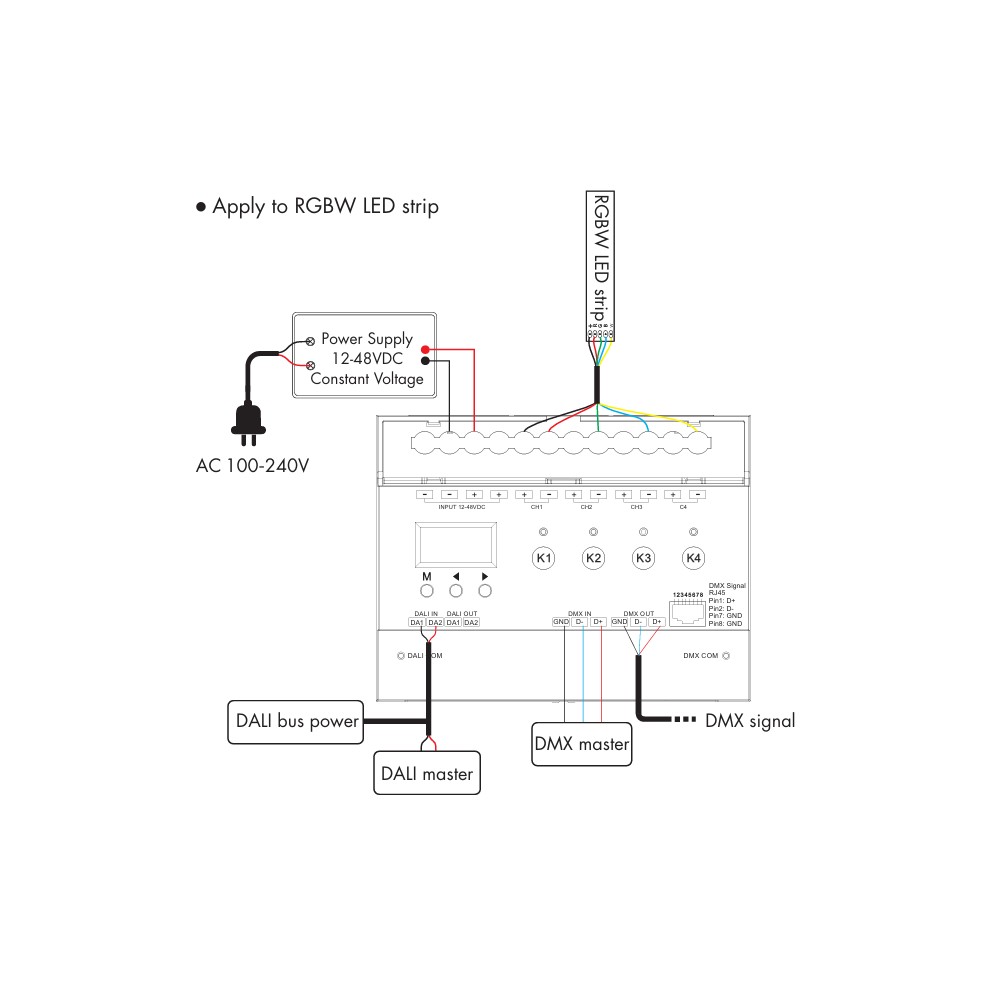

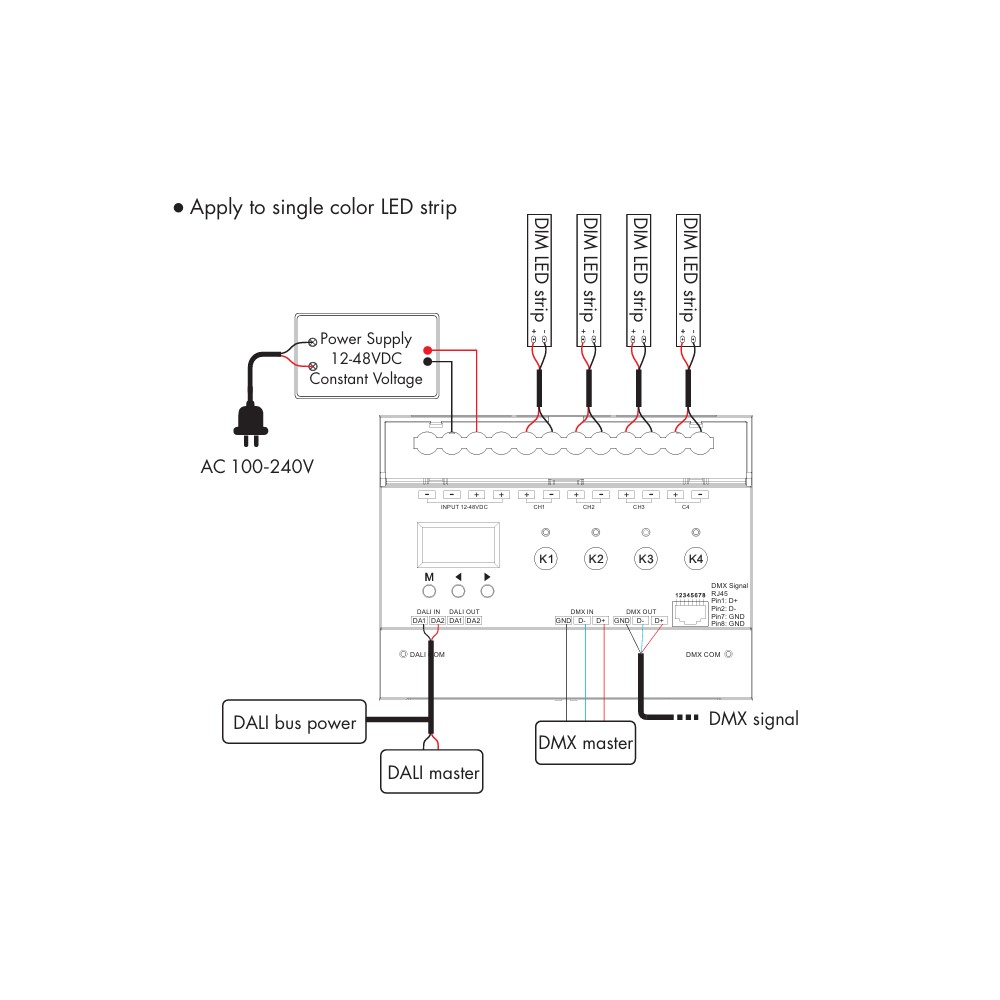

  1-4 DALI addresses, support DT6 dimming, DT8-TC color temperature and DT8-RGB, DT8-RGBW light types.
  Support DALI dimming parameter setting, including fade time, fade rate, power on level,
  system fail level and so on.
  DALI address can be assigned manually or autonomously by DALI host.
  Comply with DALI standard protocol IEC 62386-101, 102, 207, 209, etc.
  Compatible with other DALI products, DALI2 certified.
• DMX mode:
  1/2/3/4 channel decoding mode selectable.
  8-bit (256 levels)/16-bit (65536 levels) grayscale selectable.
  Output dimming curve gamma 0.1-9.9 selectable.
  Comply with DMX512 standard protocol.
  Support RDM function, can realize the communication between DMX master and DMX decoder.
• Manual mode:
  Support manual control each channel by 4 buttons, short press on/off, long press dimming.
  250/500/1000/2000/4000/8000/16000/32000Hz output PWM frequency selectable.
  Anti-reverse/over-heat/short circuit protection.
