New DALI/DMX 4-Channel Relay Switch View larger
Previous Next

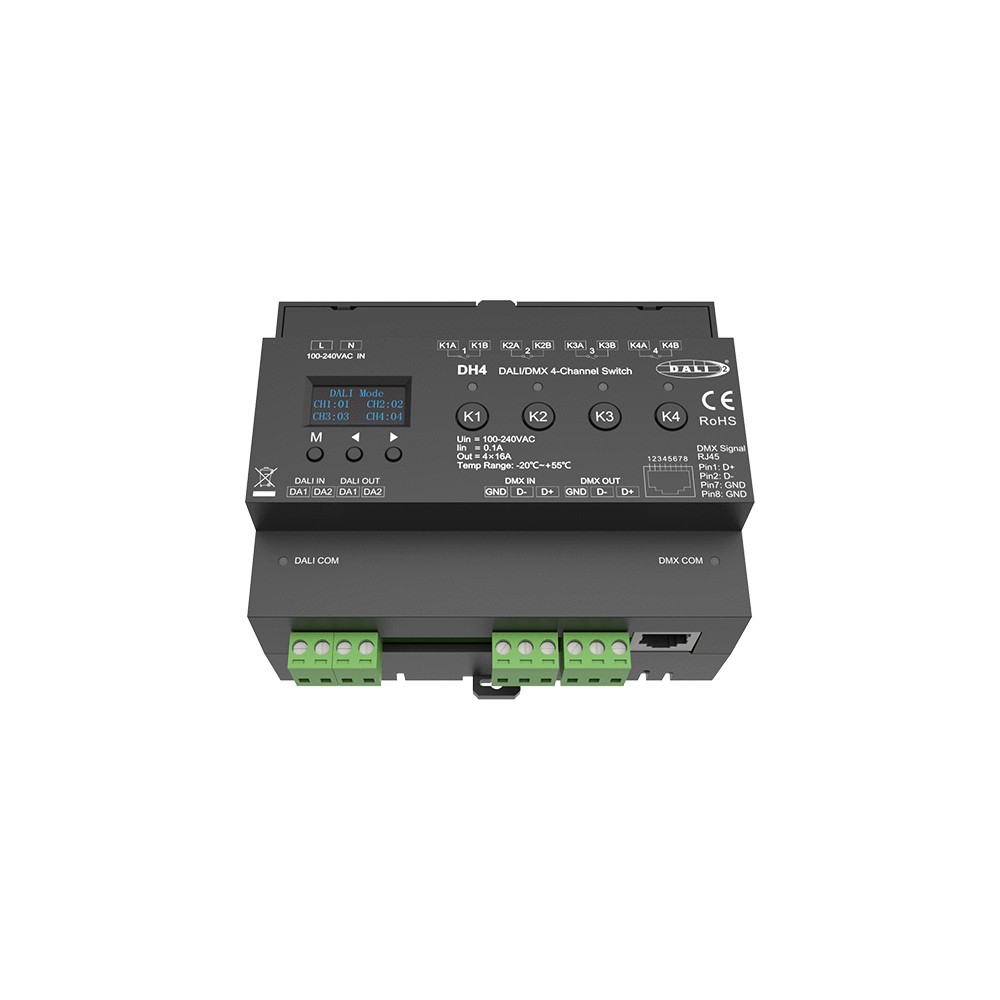

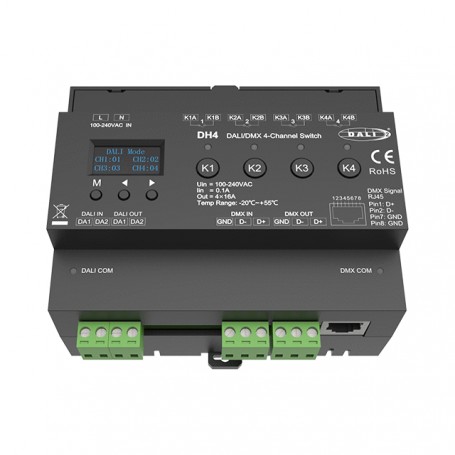

DALI/DMX 4-Channel Relay Switch

LP-DALI-DMX-RL-4CH

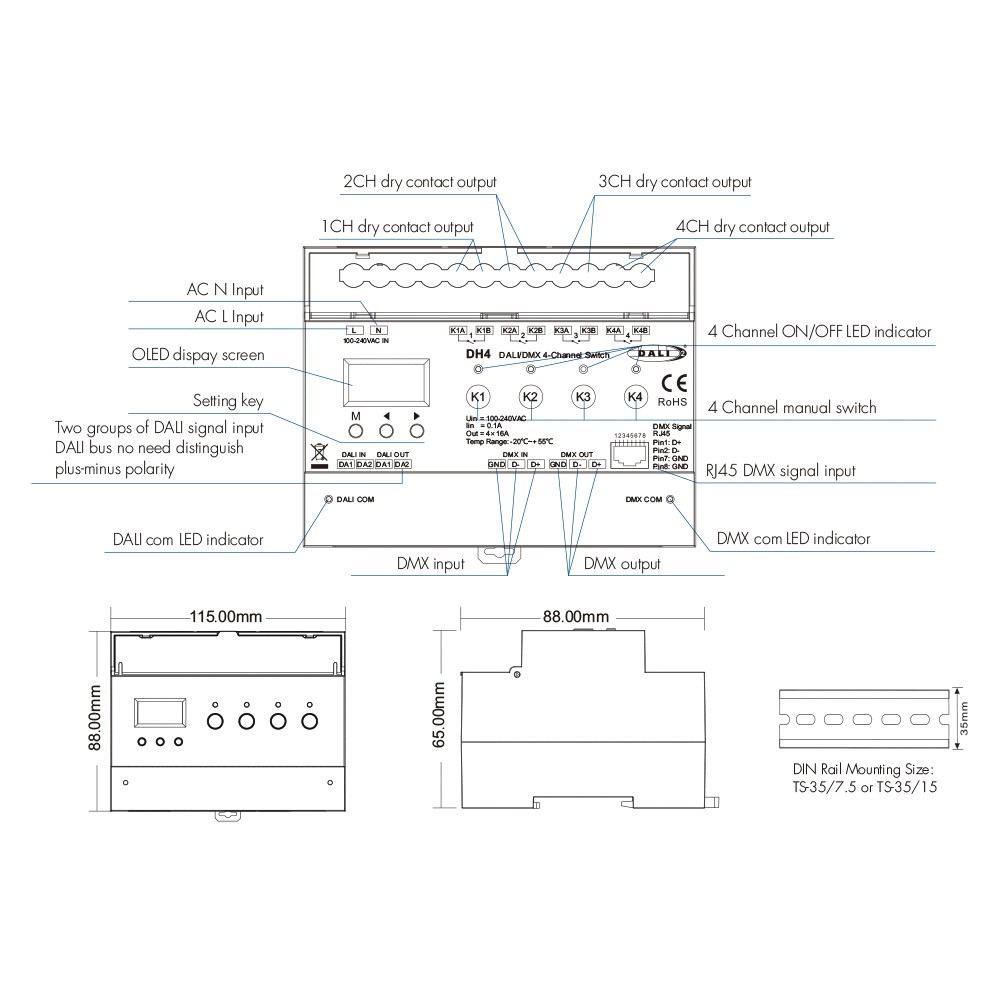

DIN 4-Channel Relay Switch with OLED screen display, supports DALI, DMX signal control.

The product is DALI2 certified.



DIN 4-Channel Relay Switch with OLED screen display, supports DALI, DMX signal control.

The product is DALI2 certified.



More details

1 Item in stock

In stock

Warning: Last items in stock!

690,00 kr tax incl.

Add to wishlist

Download

DH4.pdf

Download (815.67k)

Data sheet

Ambient temperature Ta-25~+55°C
Case Temp. Tc (Max.)+60°C
Input Voltage100-240VAC, 50/60Hz
Input CurrentNo-load standby 1.5W@240V
Output voltage100-240VAC
Output current16A resistive load - 8A Capacitive load (LED driver)
IPIP20
DimensionsL118 x W102 x H71mm
Weight0.345kg
CommunicationDALI2, IEC62386-101:2014, 103:2014, 301
Dimming InterfaceDMX512 or DALI2 interface DT7
Safety StandardsEN 61347-1/-2, EN 62493
EMC EmissionEN IEC 55015/EN IEC 61547/ETSI EN 301 489-1/-3
EMC ImmunityEN 61547
Warranty5 Years

More info

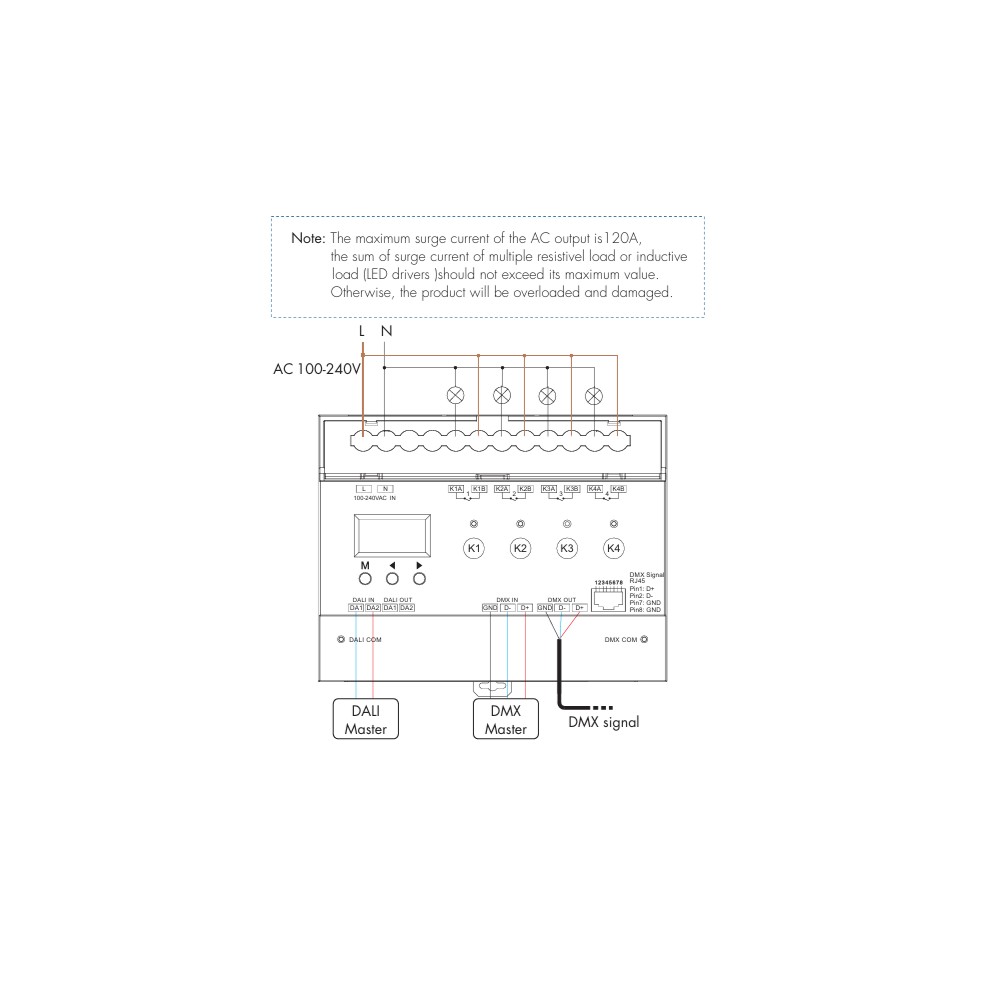

Note: The unit can't input DALI signal and DMX signal at the same time, you can only select one of the control methods.

  • 4-channel Relay Switch with OLED screen display, supports DALI, DMX signal control.
    Auto switching by signal input or switching by key operation for three dimming modes: DALI, DMX, and manual mode.
  • DALI mode:
    1-4 DALI addresses, support DT7 relay, system fail level and so on.
    DALI address can be assigned manually or autonomously by DALI host.
    Comply with DALI standard protocol IEC 62386-101, 102, 207, 209, etc.
    Compatible with other DALI products.
  • DMX mode:
    1/2/3/4 channel decoding mode selectable.
    Comply with DMX512 standard protocol.
    Support RDM function, can realize the communication between DMX master and DMX decoder.
  • Manual mode:
    Support manual control each channel by 4 buttons, short press on/off.
    Anti-reverse/over-heat/short circuit protection.
