sv LP-SPI-OLED-02

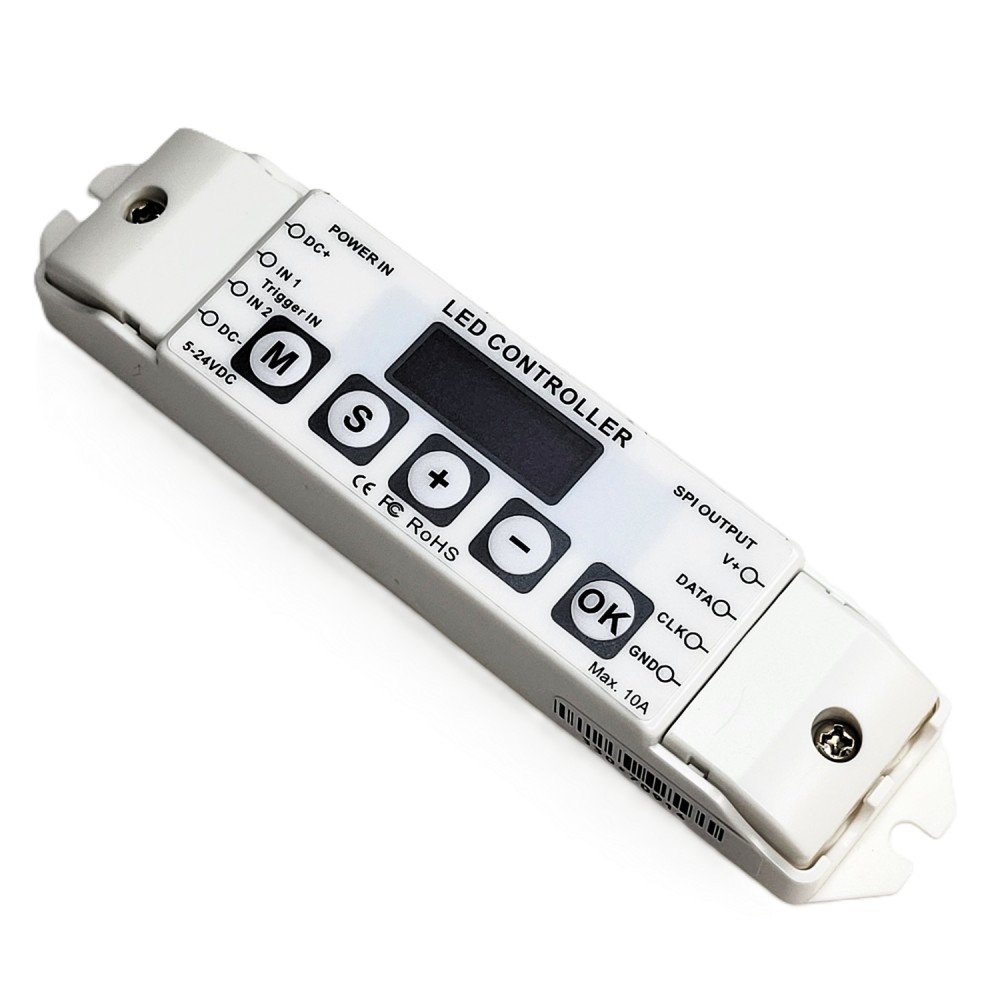

SPI Controller 5-24VDC suitable for SPI LED strip etc.

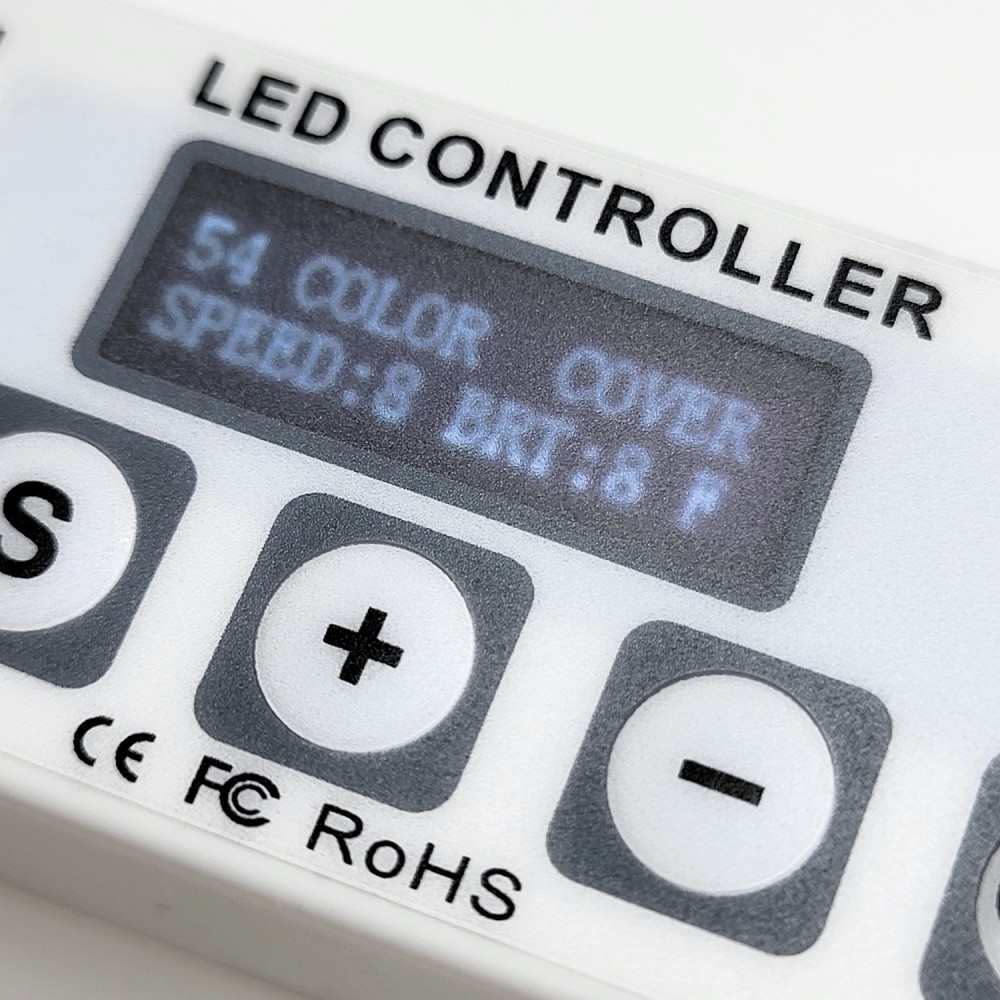

1. With OLED display for easy setup.
2. Can control up to 1000 pixels.
3. 54 selectable programs. Speed, brightness can be adjusted.
4. 2 Trigger function via 2 channels that can be connected to PIR or other switch.
5. Built-in real-time clock, possibility of 8 timing settings.
SPI Controller 5-24VDC suitable for SPI LED strip etc.
1. With OLED display for easy setup.
2. Can control up to 1000 pixels.
3. 54 selectable programs. Speed, brightness can be adjusted.
4. 2 Trigger function via 2 channels that can be connected to PIR or other switch.
5. Built-in real-time clock, possibility of 8 timing settings.
1 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 50W@5V : 120W@12V : 240W@24V |
| Working Temperature | -20~+55°C |
| Input Voltage | 5-24VDC |
| Output voltage | 5-24VDC |
| Output current | Max 10A |
| IP | IP20 |
| Dimensions | 135x30x20mm |
| Color | White |
| Communication | SPI |
| Warranty | 3 Years |
Supports the following IC.
2811 (Tm1803, TM1804, Tm1809, TM1812, UCS1903,
UCS1909, UCS1912, UCS2903, UCS2909, UCS2912,
WS2811, WS2812B, SK6822, WS2813,APA104, P943,
WS2818A, WS2818B, GS8206, P943, SM16703,
WS2815, GS8208, SK6813, TX1818)
2801 (WS2801, WS2803)
6803 (LPD6803, LPD1101, D705, UCS6909, UCS6912)
8806 (LPD8803, LPD8806, LPD8809, LPD8812)
8903 (UCS8903)
1814 (TM1814)
2904 (SK6812RGBW, UCS2904B, P9412, WS2813RGBW,
WS2814)
8904 (Ucs8904)
