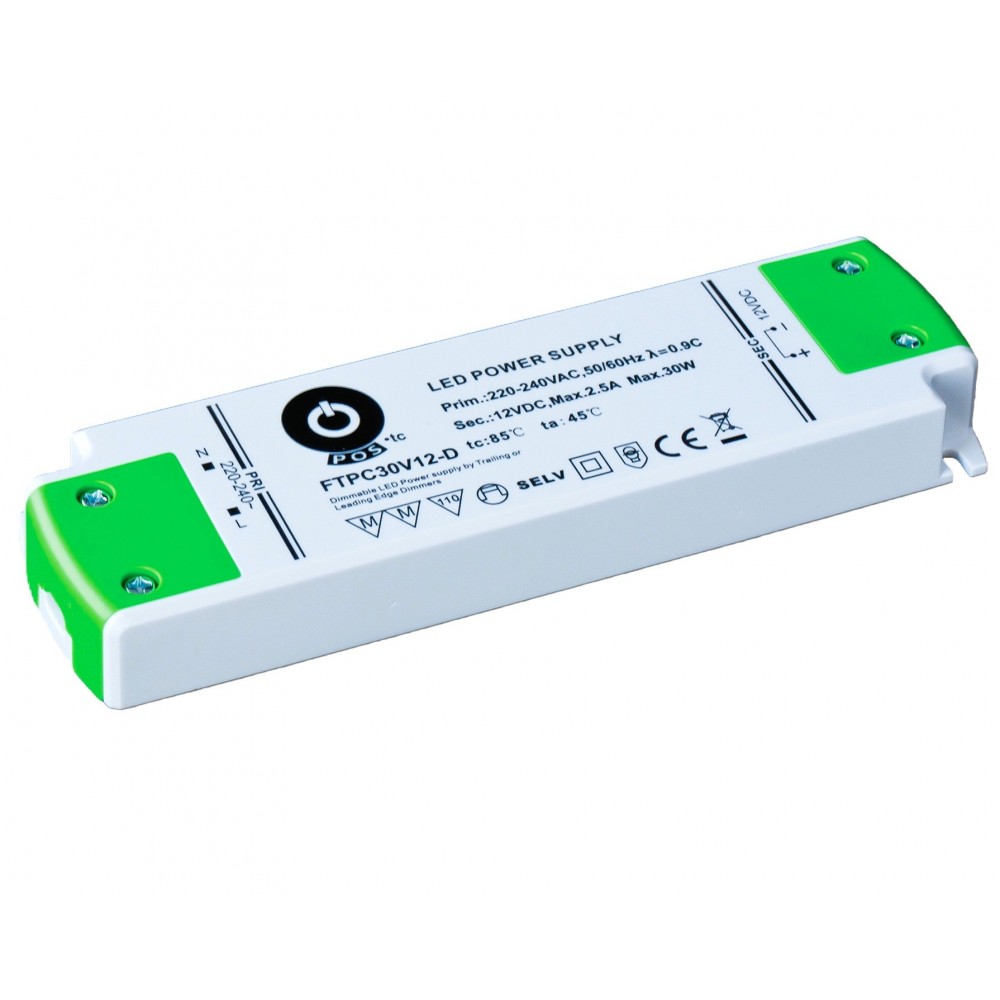

LED Power Supply 30W 12V TRIAC Dimmable

FTPC30V12-D

Triac dimmable 30W, Single Output 12VDC Switching Power Supply.

Suitable for LED installation, LED strip, LED panels, etc.

Triac dimmable 30W, Single Output 12VDC Switching Power Supply.

Suitable for LED installation, LED strip, LED panels, etc.

More details

2 Items in stock

In stock

Warning: Last items in stock!

264,00 kr tax incl.

Add to wishlist

Download

Data sheet

Power30W
Efficiency83%
Working Temperature-20°C~45°C
Ambient temperature TaTa: 45°C
Case Temp. Tc (Max.)+85°C
Input VoltageAC220-240V/50-60Hz
Output voltage12VDC
IPIP20
Height18.3mm
Width46mm
Length158mm
Dimmable functionTriac/Phase cut
Dimming MethodPulse Width Modulation
Warranty5 Years

More info

Triac dimmable LED Power Supply

  • To supply 12VDC constant voltage LED
  • Trailing edge dimming (reverse-phase control)
  • Over heat protection, autoreset
  • Overload protection, autoreset
  • Full isolated plastic case
