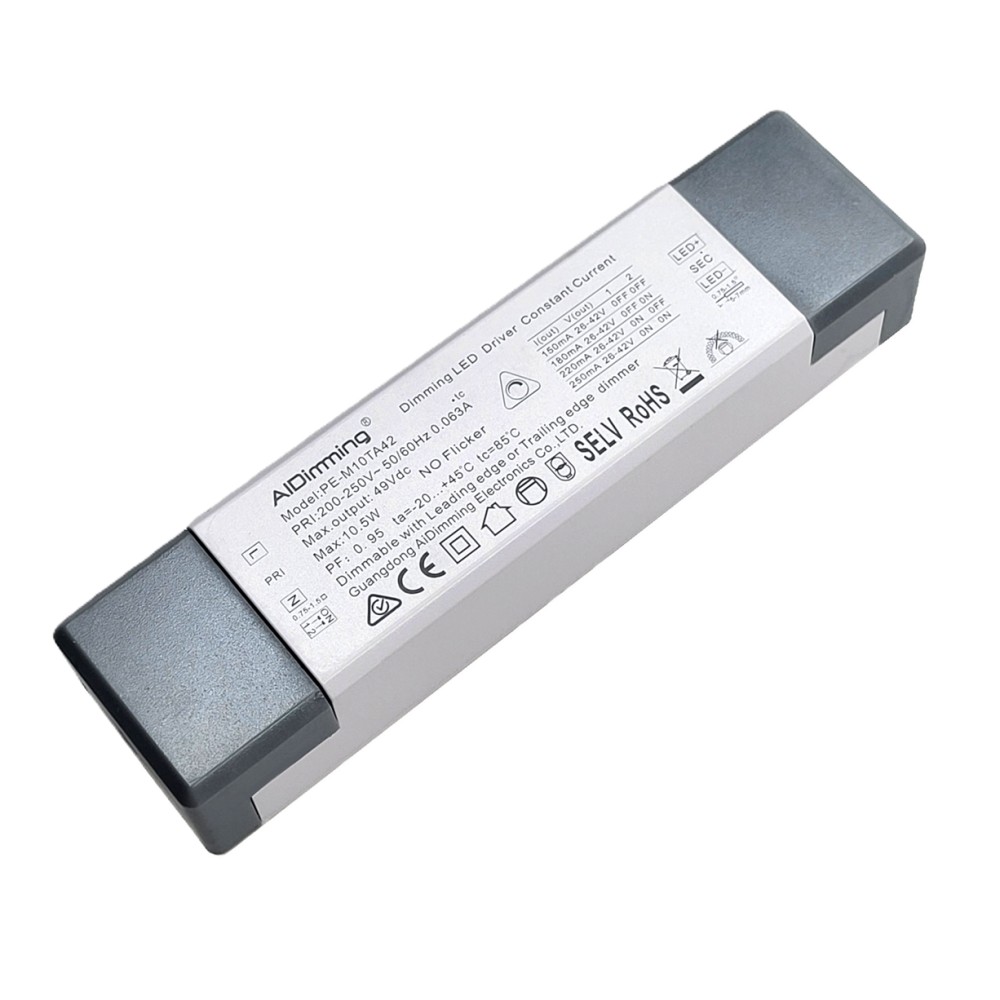

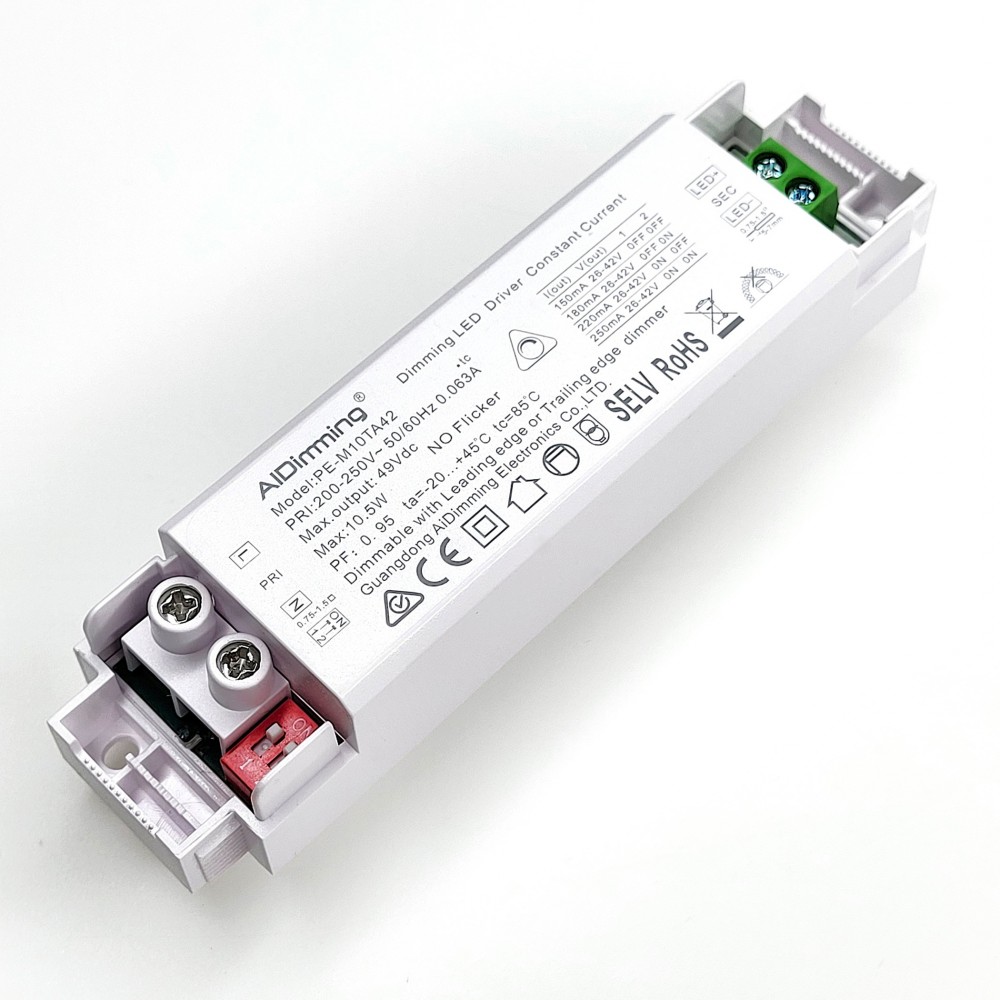

sv PE-M10TA42
Suitable for LED Downlight 150mA, 180mA, 220mA, 250mA constant current.
Suitable for LED Downlight 150mA, 180mA, 220mA, 250mA constant current.
60 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 3.6 - 10.5W |
| Efficiency | 83% |
| Constant Current | 150 - 250mA |
| Ambient temperature Ta | Ta: -20 - 45°C |
| Case Temp. Tc (Max.) | +85°C |
| Input Voltage | 200~250VAC 50/60Hz, Power factor >= 0.98@230V |
| Input Current | 0.063A |
| Output voltage | 26 - 42VDC |
| IP | IP20 |
| Cable | 0.75-1.5mm² |

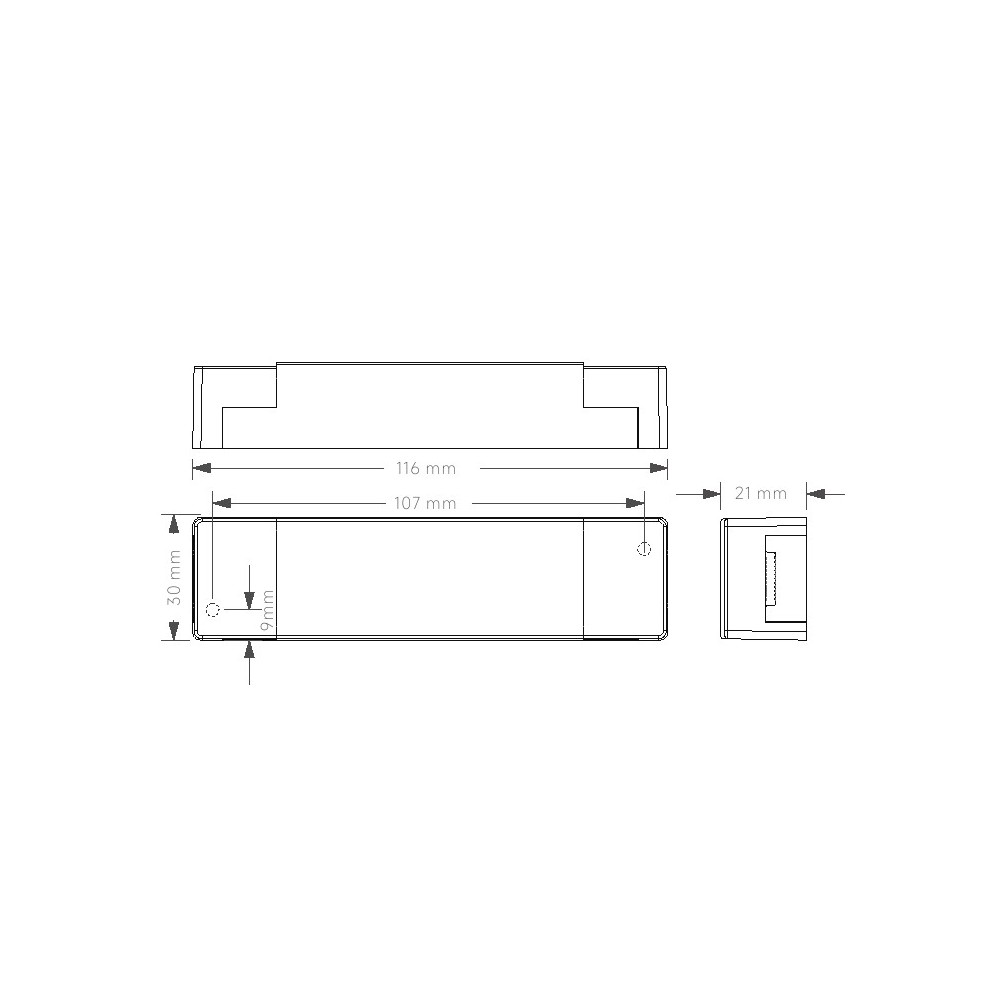

| Height | 21mm |
| Width | 30mm |
| Length | 116mm |
| Weight | 65g |
| Dimmable function | 0-100% |
| Dimming Method | Forward and Reverse-phase control |
| Safety Standards | EN 61347-1, EN 61347-2-13 |
| EMC Emission | EN 55015 |
| EMC Immunity | EN 61547, EN 61000-3-3; EN 61000-3-2, 3.75kVAC |
