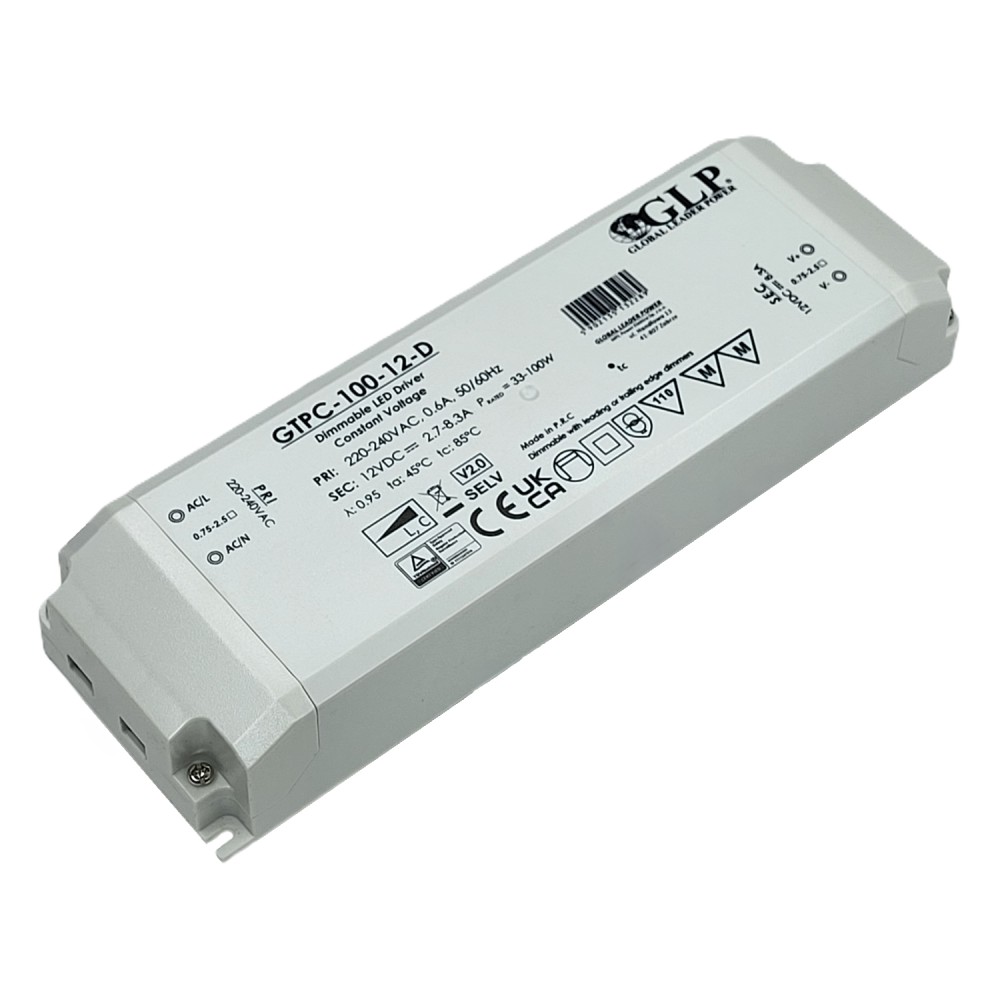

sv GTPC-100-12-D
Suitable for LED installation, LED strip, LED panels, LED 12V spotlights etc.
Suitable for LED installation, LED strip, LED panels, LED 12V spotlights etc.
4 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 34-100W |
| Efficiency | 89% |
| Working Temperature | -20°C~50°C |
| Ambient temperature Ta | Ta: 40°C |
| Case Temp. Tc (Max.) | +80°C |
| Input Voltage | 220~240VAC 50/60Hz, Power factor >= 0.95 |
| Input Current | 0.6A / 230VAC |
| Inrush Current (Typ.) | 65A / 230VAC; 500μs |
| Output voltage | 12VDC |
| Output current | 8.3A |
| IP | IP20 |
| Cable | 0.75-2.5mm² |

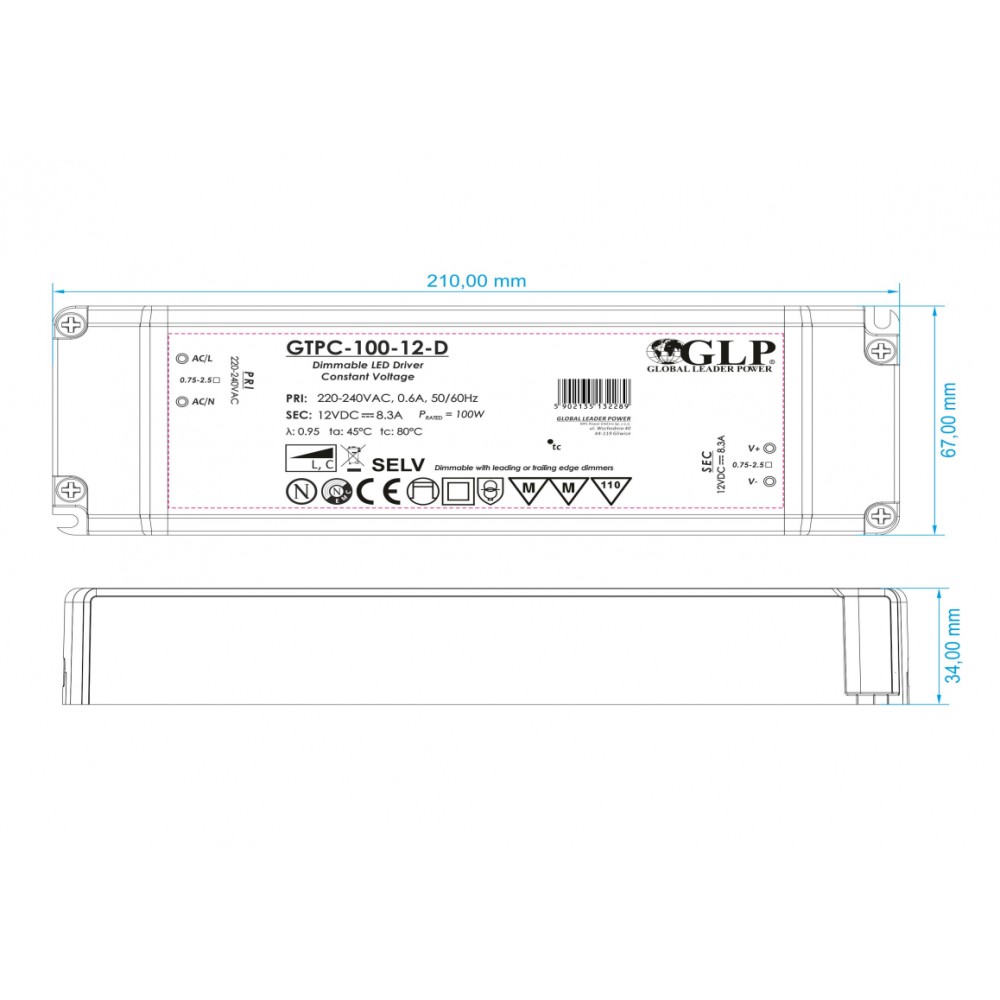

| Height | 34mm |
| Width | 67mm |
| Length | 210mm |
| Weight | 0.36kg |
| Dimmable function | 1-100% |
| Dimming Method | Pulse Width Modulation |
| Safety Standards | EN 61347-1, EN 61347-2-13, EN 60598-1 |
| EMC Emission | EN 55015, EN 62493 |
| EMC Immunity | EN 61547, EN 61000-3-3; EN 61000-3-2, 3.75kVAC |
| Warranty | 3 Years |
