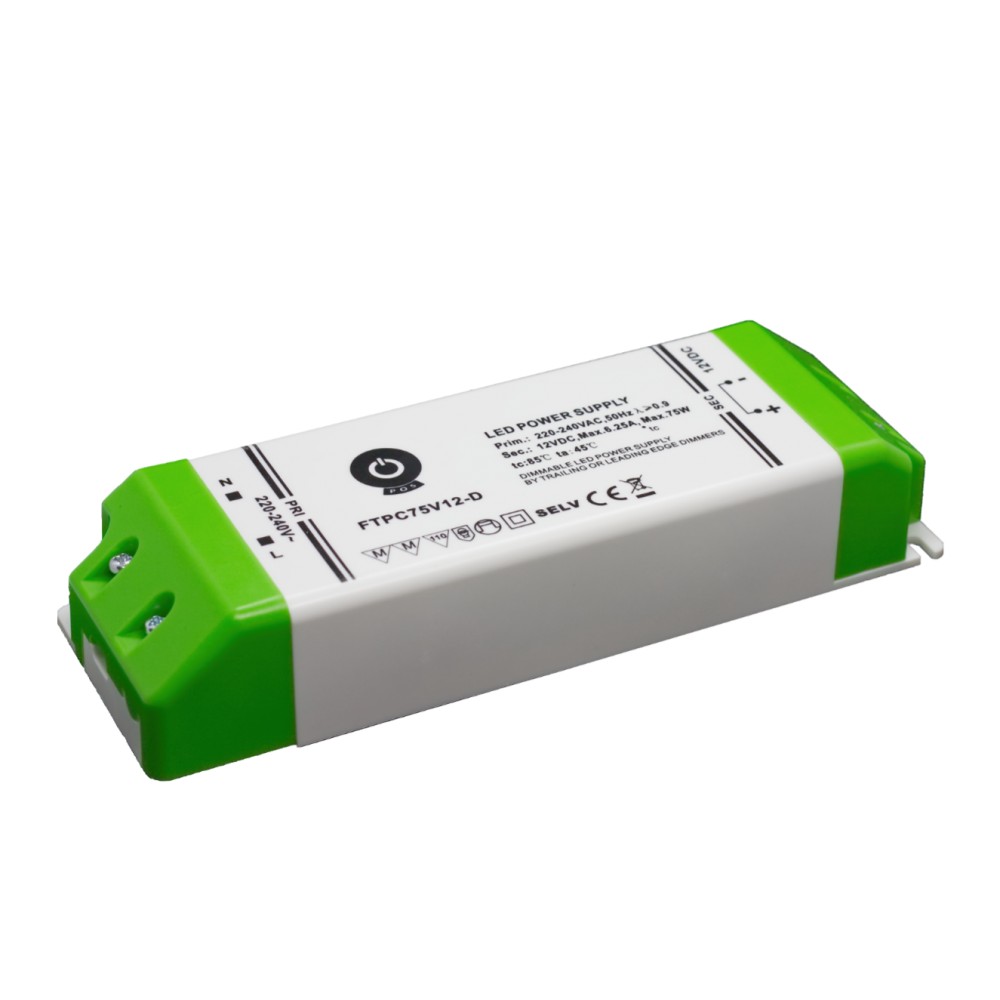

LED Power Supply 75W 12V Dimmable

FTPC75V12-D

Dimmable 75W, Single Output 12VDC Switching Power Supply.

Suitable for LED installation, LED strip, LED panels, etc.

Dimmable 75W, Single Output 12VDC Switching Power Supply.

Suitable for LED installation, LED strip, LED panels, etc.

More details

7 Items in stock

In stock

442,00 kr tax incl.

Add to wishlist

Download

Data sheet

Power75W
Efficiency86%
Working Temperature-20°C~45°C
Ambient temperature TaTa: 45°C
Case Temp. Tc (Max.)+85°C
Output voltage12VDC
Output current6.25A
IPIP20

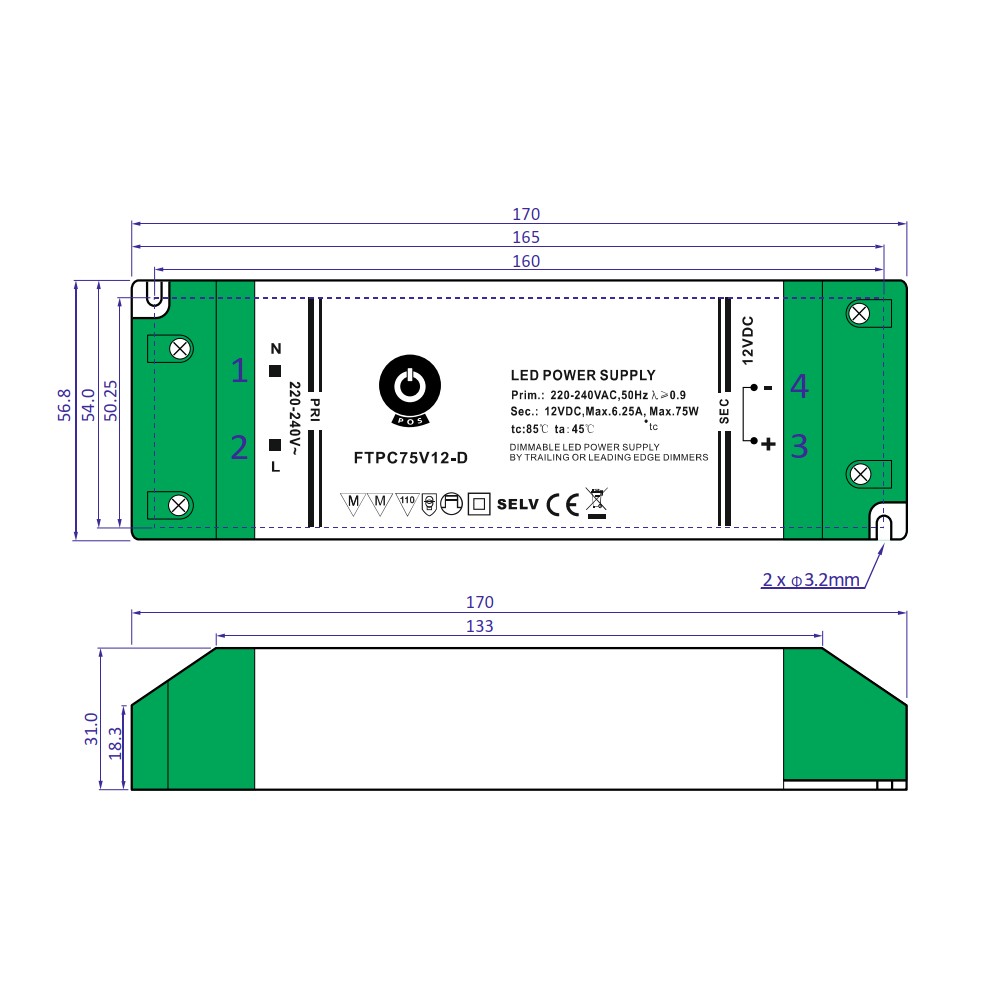

Height31mm
Width56.8mm
Length170mm
Dimmable functionTriac/Phase cut
Dimming MethodForward and Reverse-phase control
Warranty5 Years

More info

Triac dimmable LED Power Supply

  • To supply 12VDC constant voltage LED
  • Trailing edge dimming (reverse-phase control)
  • Over heat protection, autoreset
  • Overload protection, autoreset
  • Full isolated plastic case
