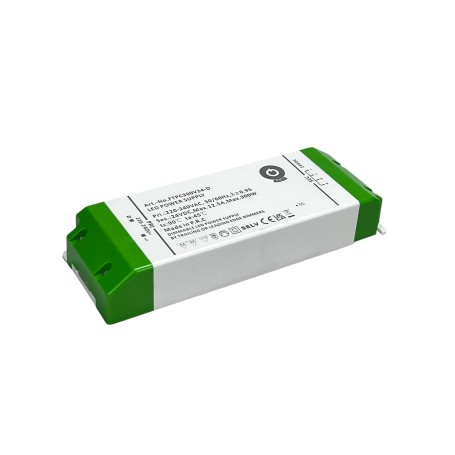

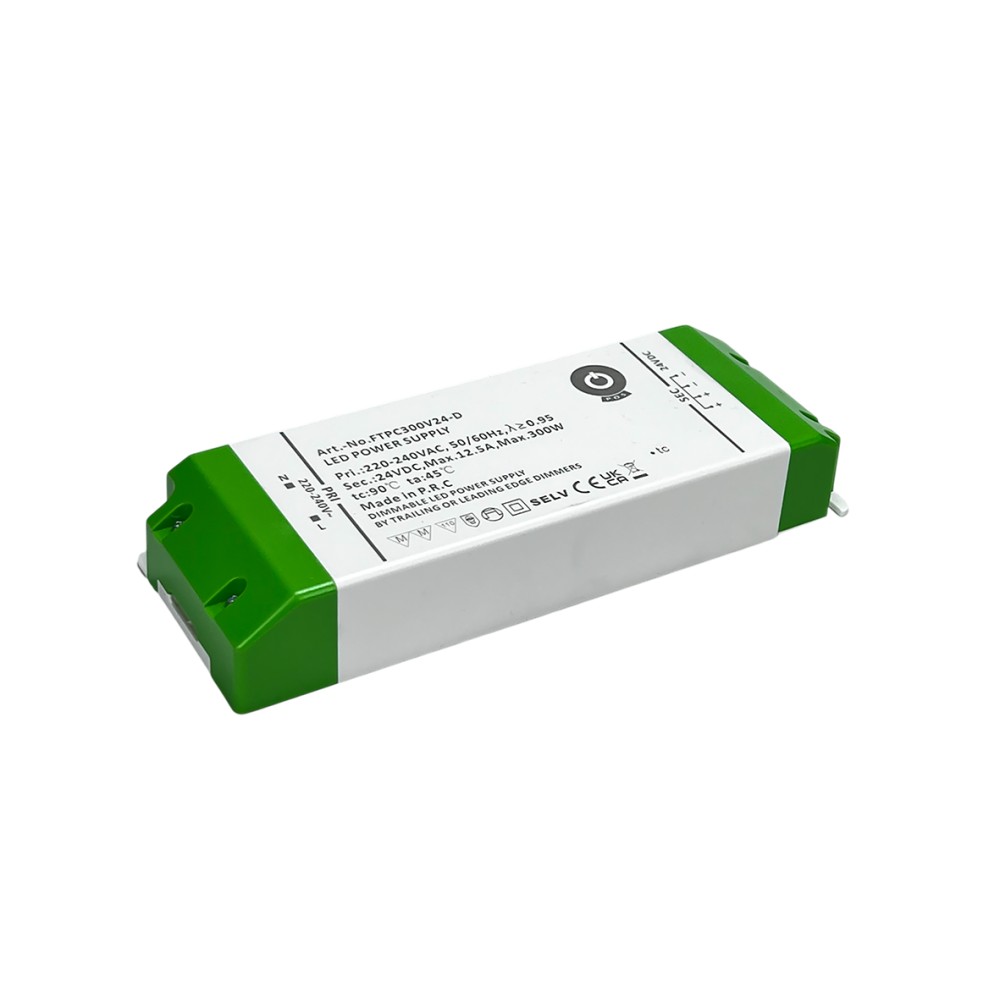

sv FTPC300V24-D
Suitable for LED installation, LED strip, LED panels, etc.
Suitable for LED installation, LED strip, LED panels, etc.
1 Item in stock Items in stock
In stock
Warning: Last items in stock!
Availability date:
| Power | 300W |
| Efficiency | 94% |
| Working Temperature | -20°C~45°C |
| Ambient temperature Ta | Ta: 45°C |
| Case Temp. Tc (Max.) | +90°C |
| Input Voltage | 220-240V AC; 50/60Hz |
| Input Current | <1.5A / 230VAC |
| Inrush Current (Typ.) | <95A / 230VAC(25°C) |
| Output voltage | 24VDC |
| Output current | 12.5A |
| IP | IP20 |

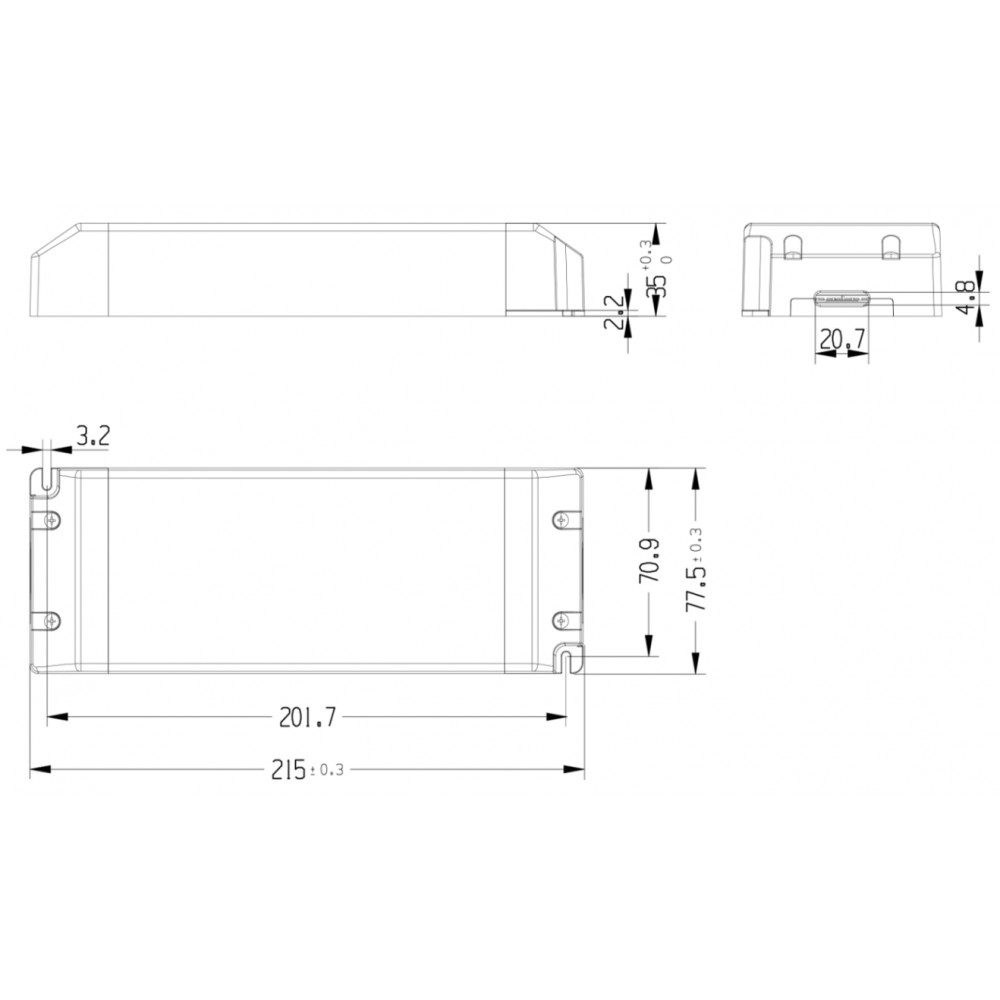

| Height | 35mm |
| Width | 77.5mm |
| Length | 215mm |
| Weight | 0,75kg |
| Dimmable function | Triac/Phase cut |
| Dimming Method | Forward and Reverse-phase control |
| Safety Standards | EN 61347-1, EN 61347-2-13 , EN 62493 |
| EMC Emission | EN 55015 |
| EMC Immunity | EN 61547 |
| Warranty | 5 Years |
