New DALI DIN AC-dimmer module + PUSH-DIM View larger

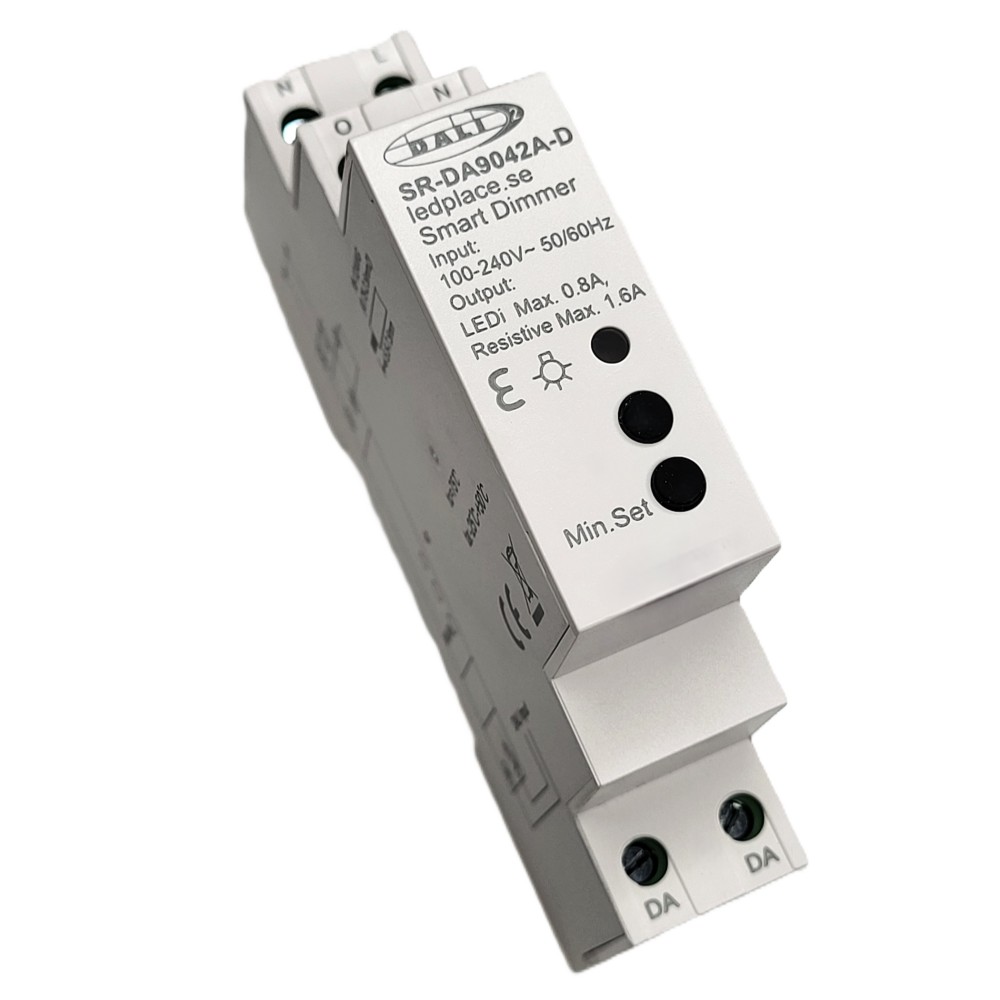

DALI DIN AC-dimmer module + PUSH-DIM

SR-DA9042A-D

Compact unit that fitts on DIN.

  • Dimmable LED lamps/drivers 200W @ 230V
  • Incandescent lighting, HV Halogen lamps 400W @ 230V
  • Low voltage halogen, lighting with electronic, transformers 200W @ 230V

The product is DALI2 certified.

Compact unit that fitts on DIN.

  • Dimmable LED lamps/drivers 200W @ 230V
  • Incandescent lighting, HV Halogen lamps 400W @ 230V
  • Low voltage halogen, lighting with electronic, transformers 200W @ 230V

The product is DALI2 certified.

More details

50 Items in stock

In stock

460,00 kr tax incl.

Add to wishlist

Download

SR-DA9042A-D instruction.pdf

Download (424.43k)

Data sheet

Power200W LED
Ambient temperature Ta-25~+50°C
Case Temp. Tc (Max.)+75°C
Input Voltage100-240VAC
Input Current1.8A max
IPIP20

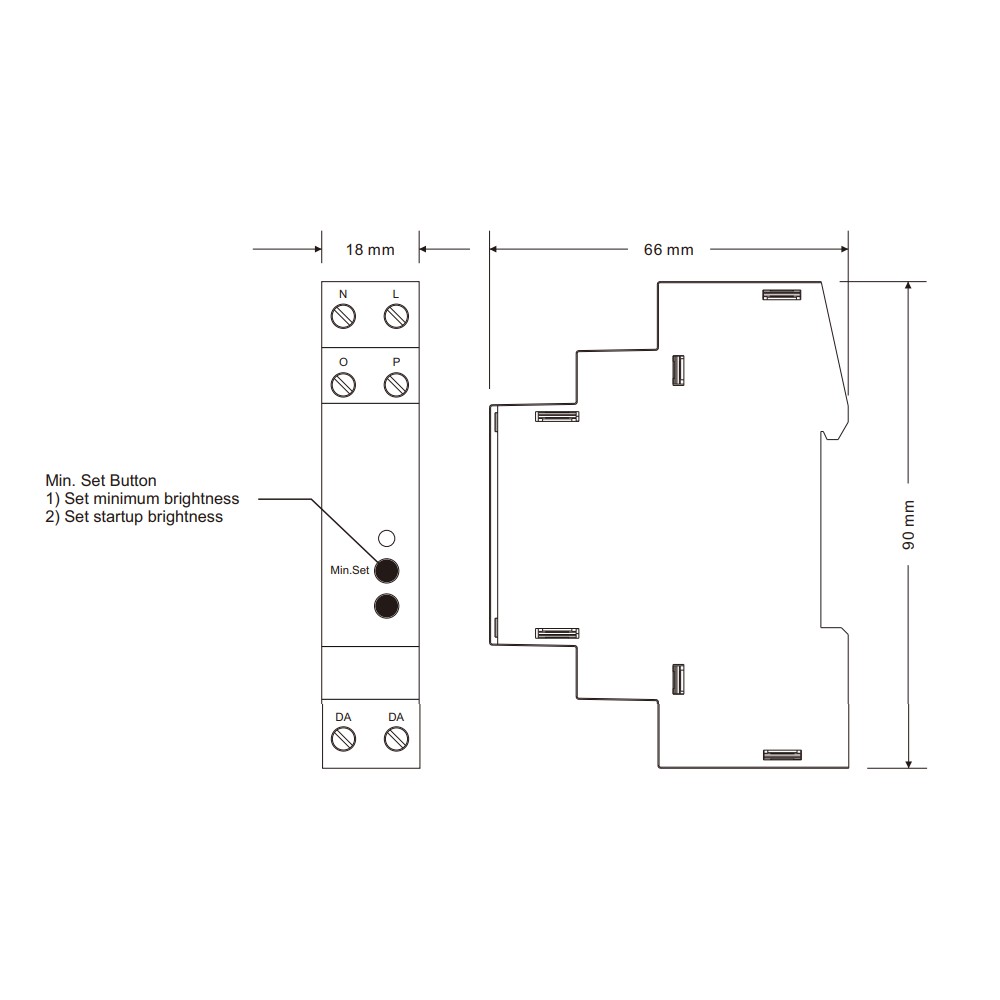

Height90mm
Width18mm
Depth66mm
Weight50g
CommunicationDALI2, IEC62386-101:2014, 103:2014, 301
Dimming InterfaceDALI-2 interface, DALI DT6 device
Safety StandardsEN 61347-1, EN 61347-2-11
EMC EmissionEN 50015
EMC ImmunityEN 61547
Warranty5 Years

More info

DALI2 dimmer module

  • Security level : Full isolated plastic case
  • Match all DALI systems in the market

Reviews

No customer reviews for the moment.

Write a review

DALI DIN AC-dimmer module + PUSH-DIM

DALI DIN AC-dimmer module + PUSH-DIM

Compact unit that fitts on DIN.

  • Dimmable LED lamps/drivers 200W @ 230V
  • Incandescent lighting, HV Halogen lamps 400W @ 230V
  • Low voltage halogen, lighting with electronic, transformers 200W @ 230V

The product is DALI2 certified.
